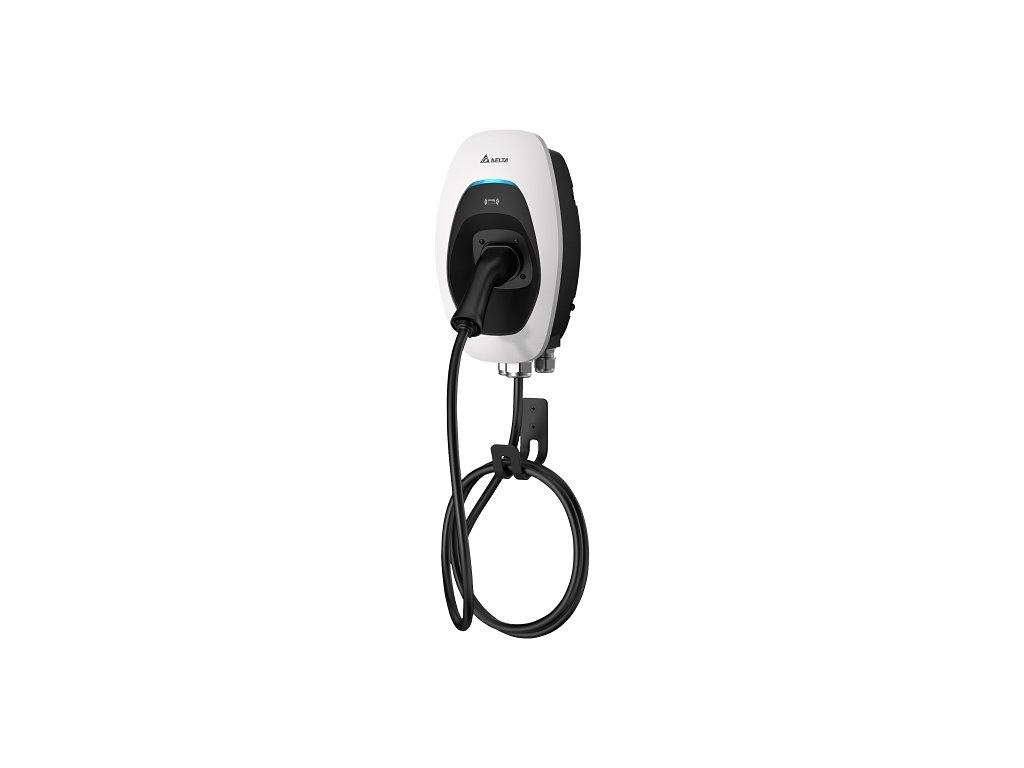

Delta AC MAX Car Charger

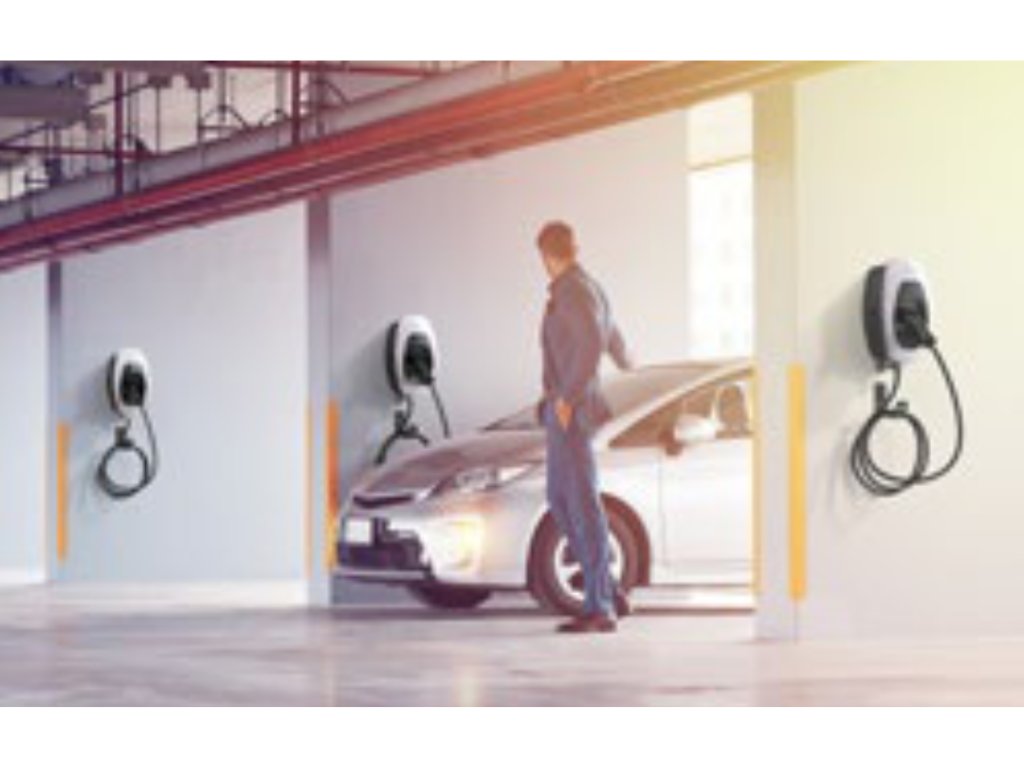

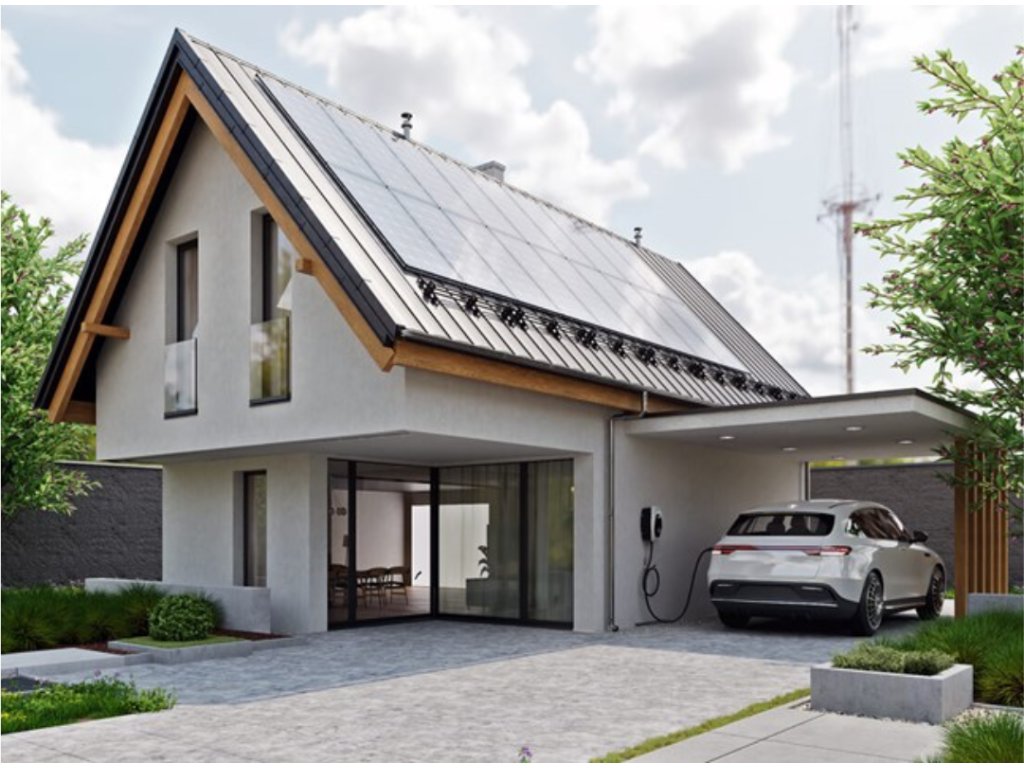

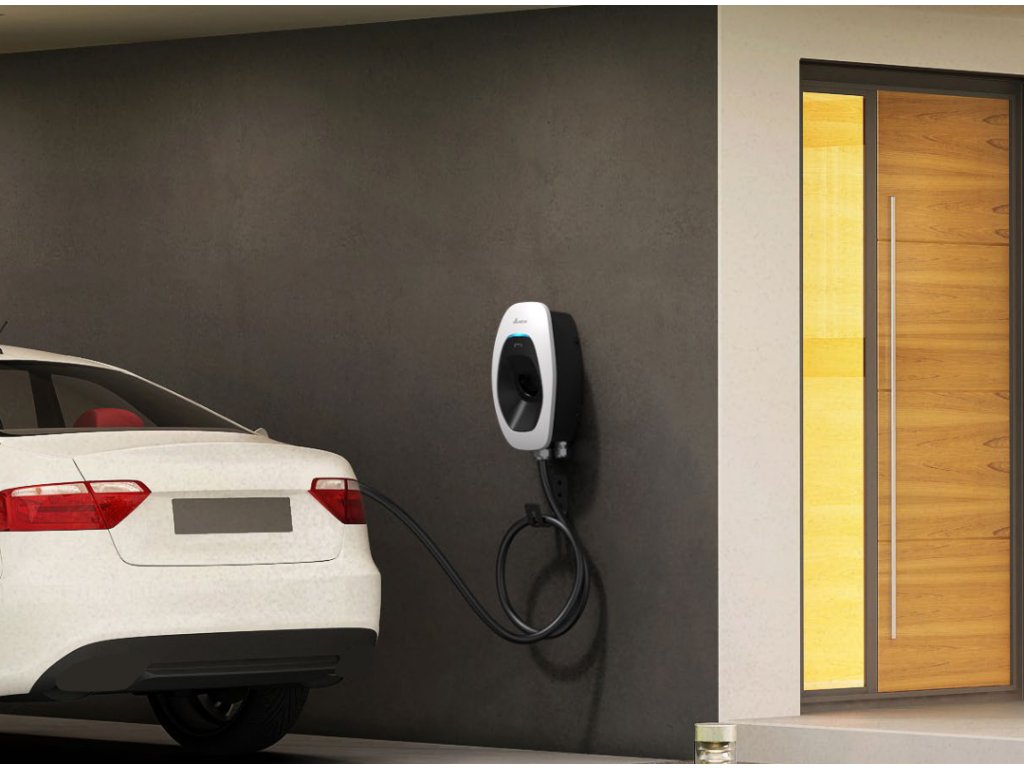

Delta AC chargers have a power range from 7 to 22 kW. With a compact design and support for Modbus RTU connectivity, Delta AC chargers are ideal for both commercial and residential charging.

Power Range

• 11 kW Variant: 6 to 16 A per phase
• 22 kW Variant: 6 to 32 A per phase

Note: Installation can be configured for either single-phase or three-phase. This setting cannot be changed during operation.

Features

• Charging Cable Length: 5m

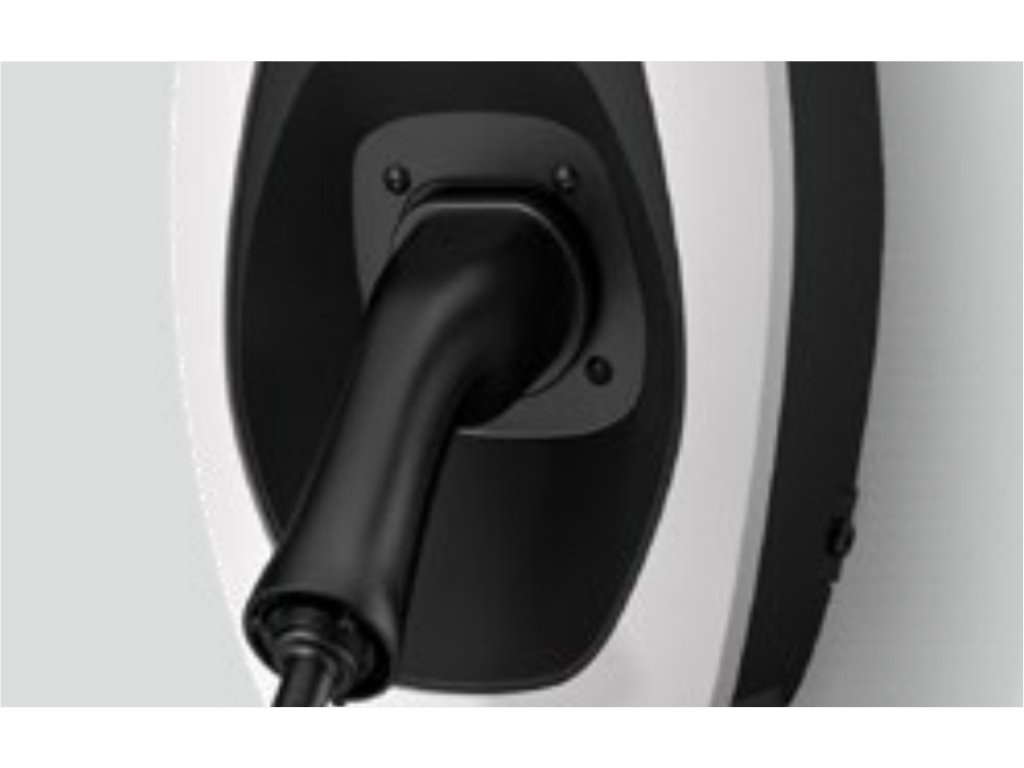

• Type of Charging Cable: IEC 62196-2 Type 2
• Input Parameters:
  - Single-Phase: 230 V, 50-60Hz 32A (maximum)
  - Three-Phase: 400 V, 50-60Hz 16A, 32A (maximum)
• Low Power Consumption in Standby Mode: < 2,6 W
• Dimensions (W x H x D): 218 x 371 x 167 mm
• Weight: 3,8 kg
• Protection Rating: IP55
• Operating Temperature: -30 ºC to +50 ºC
• Humidity: < 95% relative humidity, non-condensing

Protections

• Internal Current Protector - (Residual Current Device): AC 30mA, DC 6mA
• Electrical Protections: Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault
• After Power Outage: Random delay before resuming charging after a power outage.
• Enclosure Protection:  IK09 (IEC 62262)
• Certificates:  CE, UKCA, IEC 61851-1, IEC 62196-2

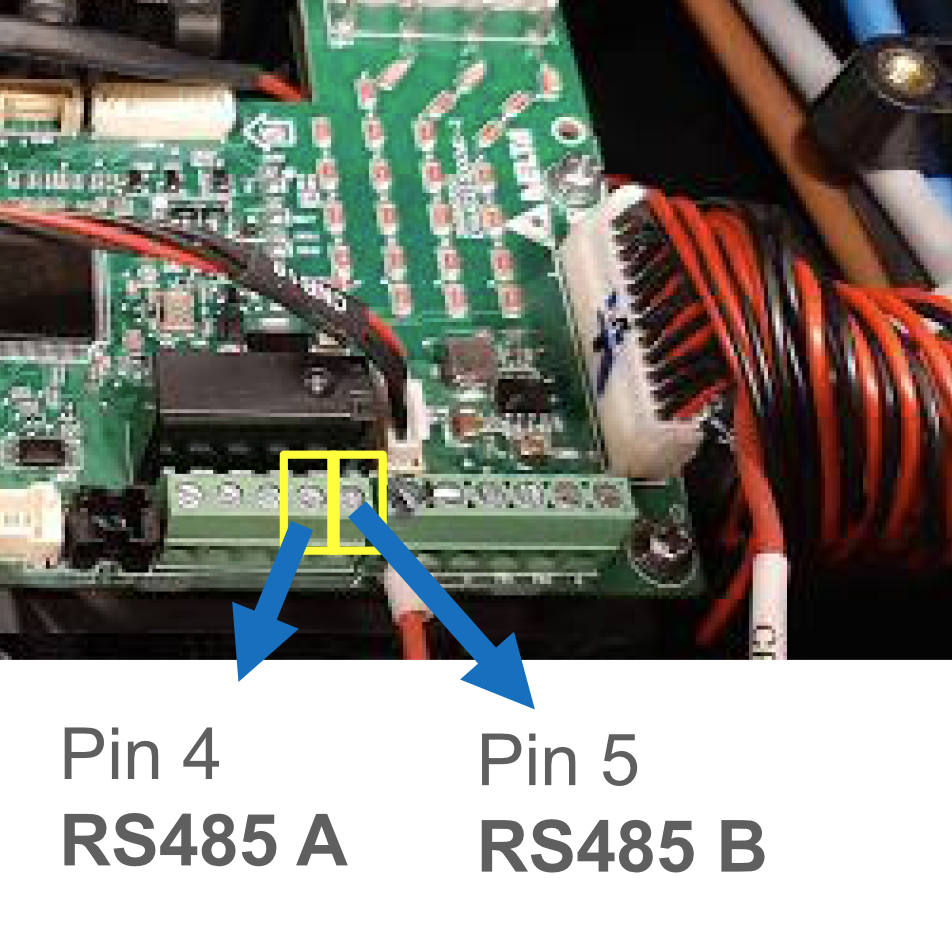

Modbus RTU Connectivity
