Flood sensor
The sensor indicates the flooding of basements, bathrooms, etc.
Active flood sensor, preventing electrode corrosion.
| Category: | Sensors |
|---|---|
| naskladnenie: | 30.12.2024 |
Features
- Active flood sensor, electrodes are excited by AC voltage to prevent corrosion
- Power supply: 24 V DC, consumption < 10mA
- Operating temperature range: -10 to +40 °C
- Output: max. 5 mA
- Dimensions: 61.9 x 28.9 x 11.3 mm (see Related files)
- Protection: IP66
Long life

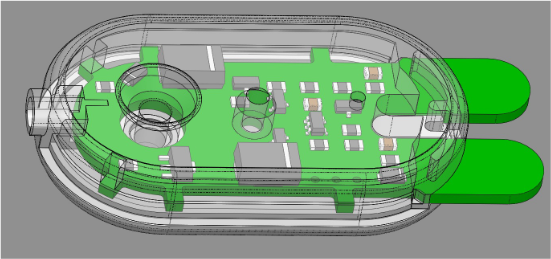

Active electronics create a constant polarity change on the legs, preventing electrolytic reactions.

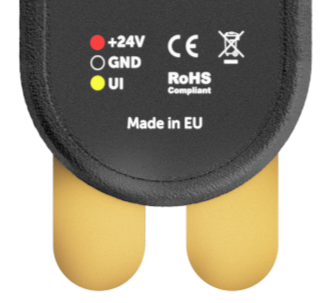

Gold-plated contact surfaces on the legs reduce oxidation processes in a humid environment (normal atmospheric humidity is sufficient for oxidation).
WARNING: Many simple sensors on the market do not solve problems with oxidation,
they can have a lifetime measured in minutes or days.

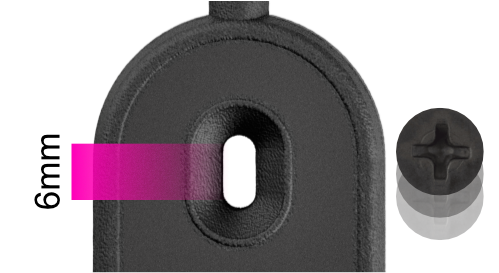

Variable installation height
For installation in thick plaster or concrete, a screw with a dowel is included. If the floor in the new building will settle during the first few years, the position of the screw in the slot can be easily moved.

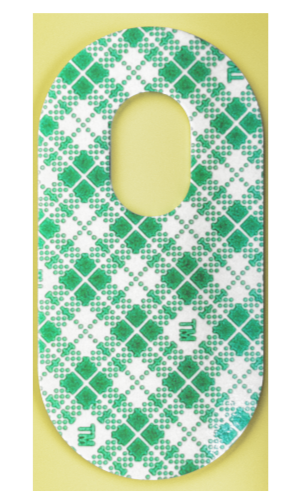

Installation without drilling
For smooth surfaces such as tiles, the sensor can be installed without drilling using a quality double-sided 3M sticker.

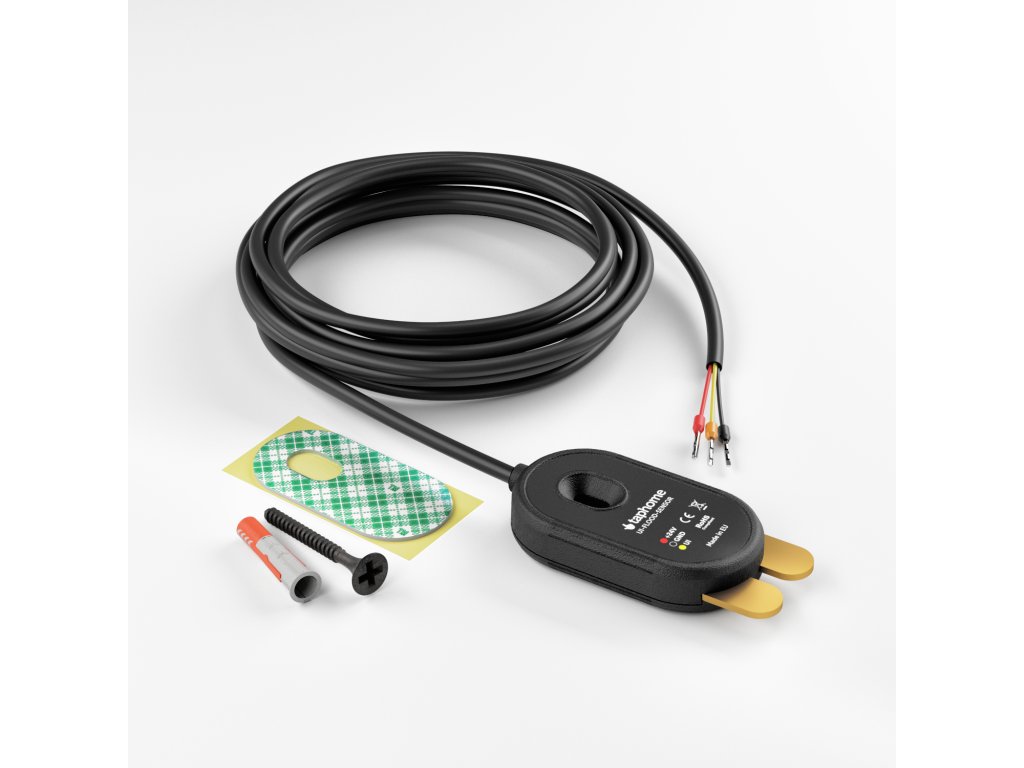

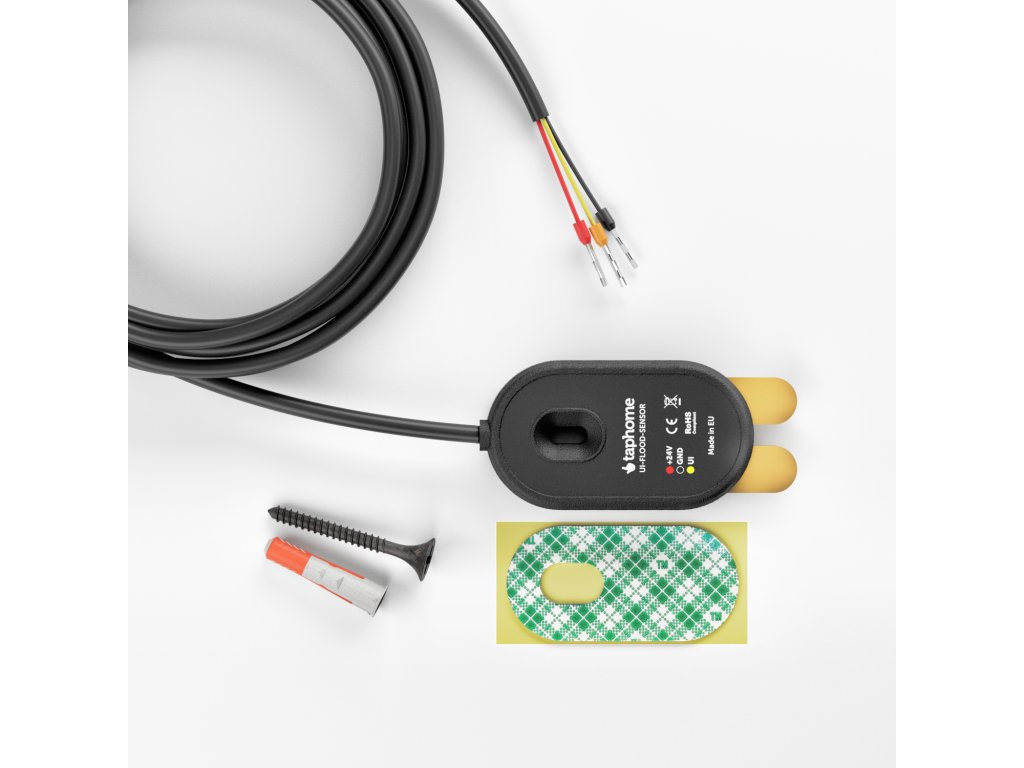

The package contains
- Sensor, cable length 3m, ⌀ 3.3mm
- Double-sided 3M sticker
- Screw ⌀3.5 x 35mm
- Dowel ⌀5 x 25mm
Wiring diagram
Simple connection to the main source 24VDC and UI (universal input).
