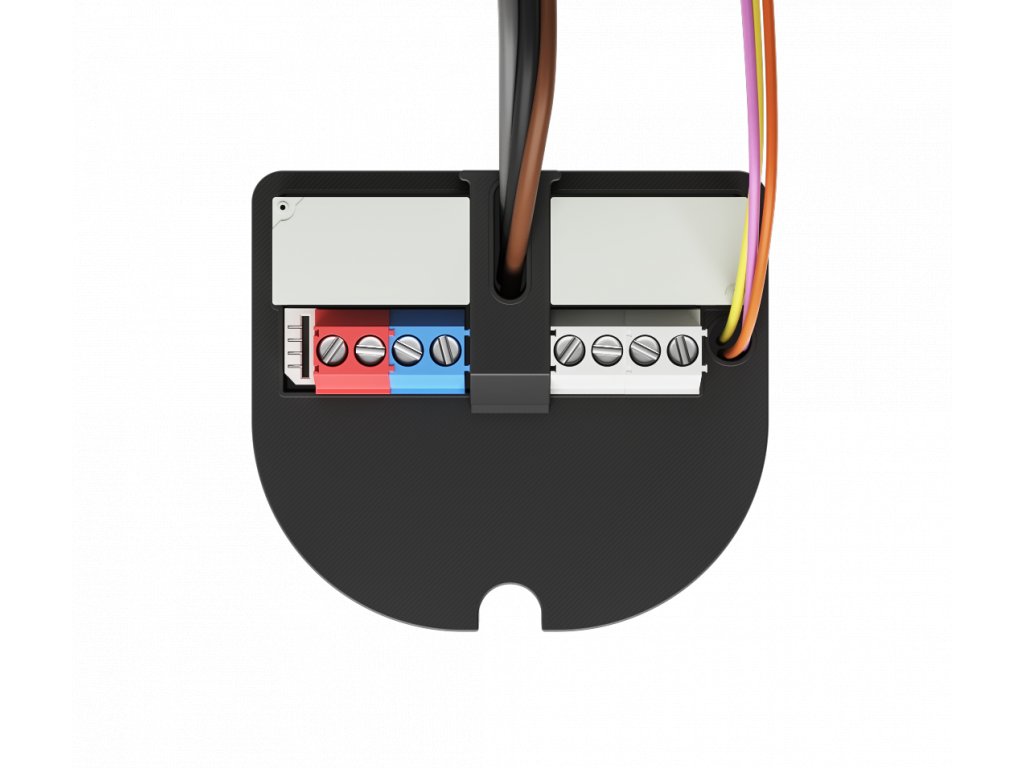

4 UI / 2 DO
With this module, power cables can be run like in a classic electric installation. It leads to a combined saving on both the cables and the work laying them. Daisy chain wiring topology for push button inputs and temperature sensor inputs saves space in the distribution box, fewer data cables are required and installation time is reduced.
| Category: | Control unit and IO modules |
|---|---|
| EAN: | 8586022930508 |
| The item has been sold out… | |
Features
- 4 universal inputs configurable for:

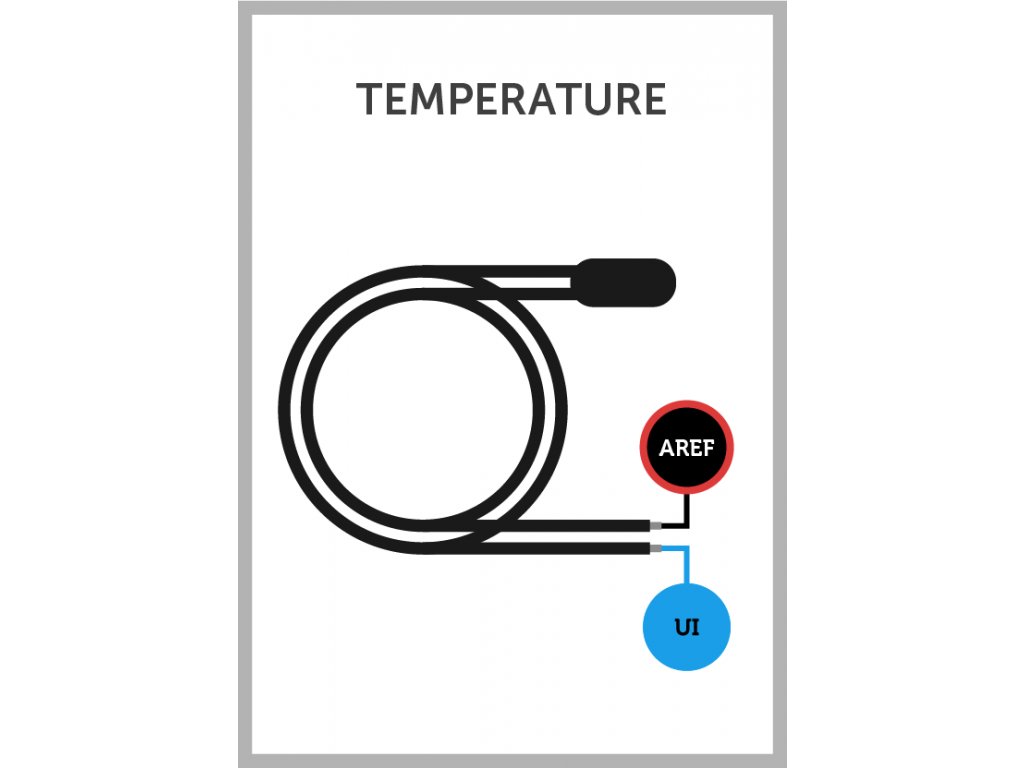

- NTC temperature inputs with resistance measurement range 100Ohm – 100kOhm +-50Ohm. Measurement deviation on 1km Cat6 cable: -0.3 °C at 25 °C.
- Push button inputs

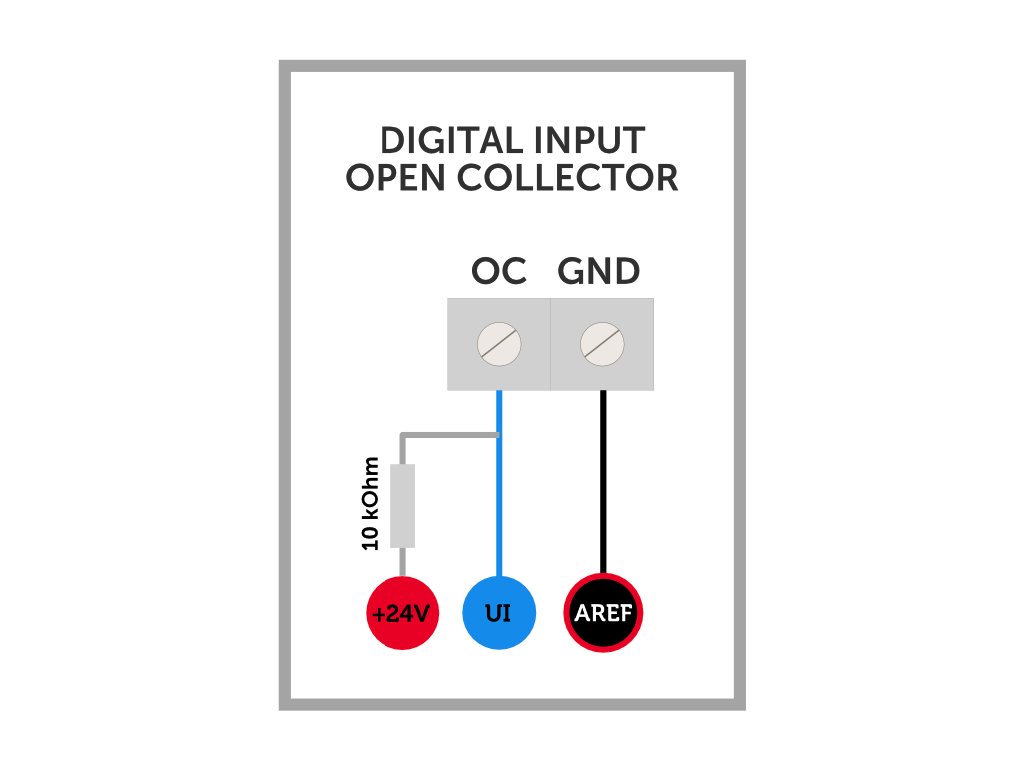

- Reed / status inputs
- Impulse counter inputs, frequency 200Hz per channel, sample rate 400Hz per channel, pulse on time > 2.5 milliseconds
- Analog inputs 0-10V with voltage measurement range 0-26VDC, single-ended type, resolution 12bits, accuracy 0.1% of full scale, input impedance >16kOhm, normal mode rejection 50dB at 60Hz, conversion time 1250 milliseconds
- For analog input 4-20mA it is necessary to connect a 500Ohm resistor and set in Service settings of the input minimum voltage to 2V (screenshot in the gallery)

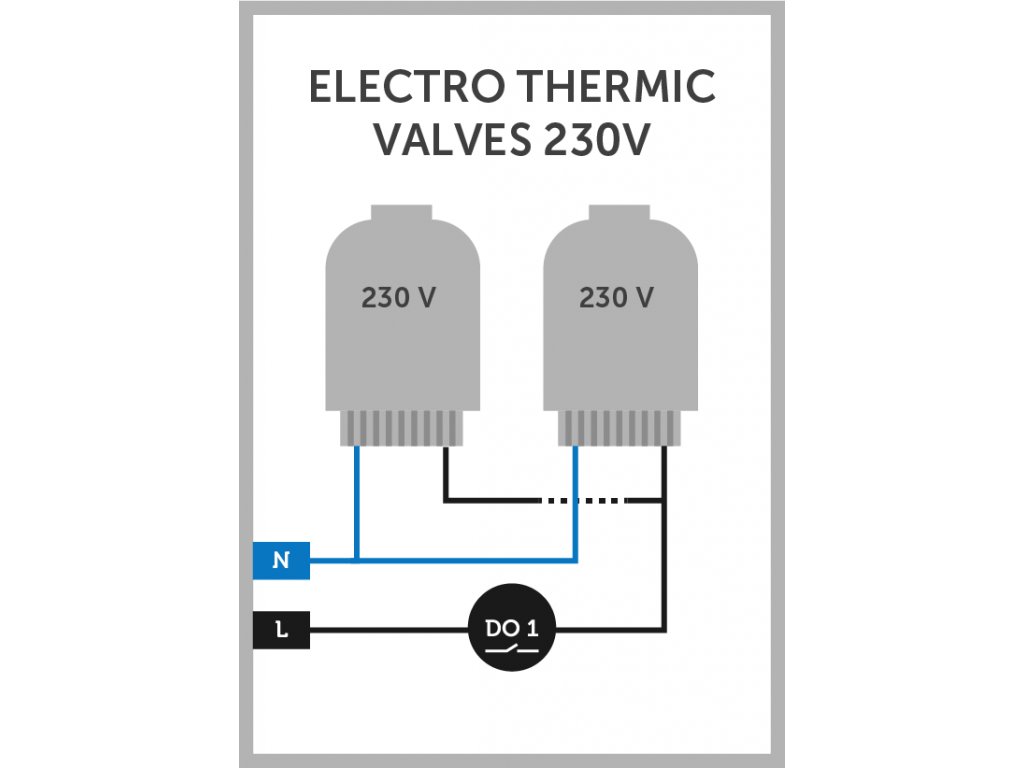

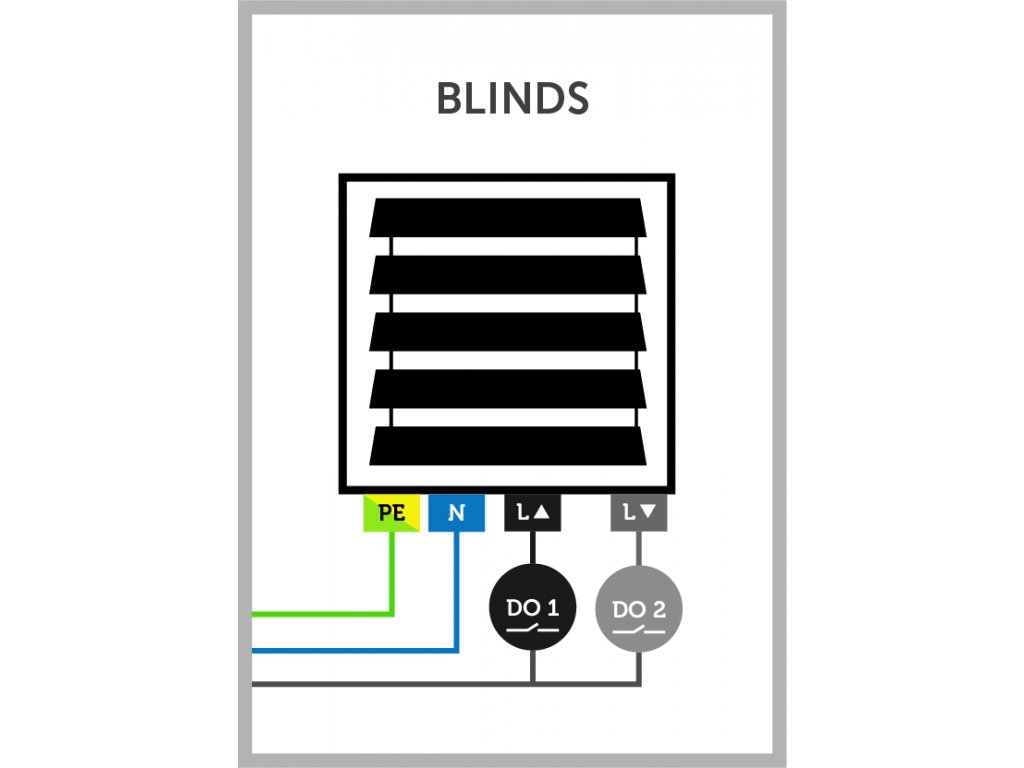

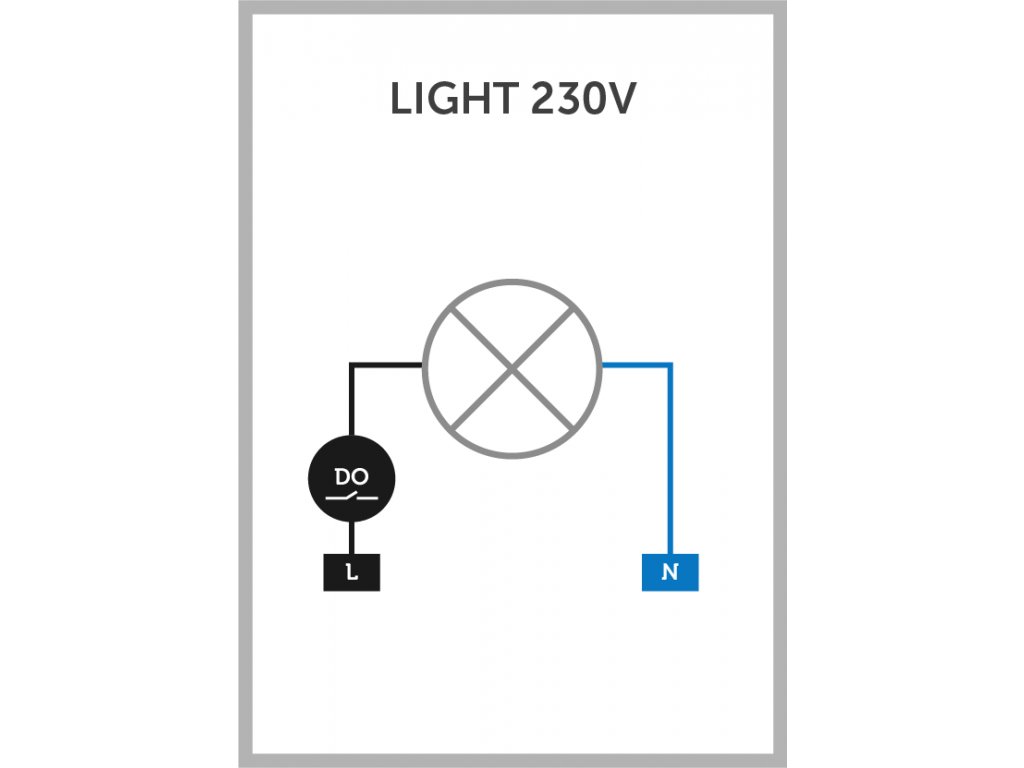

- 2 potential-free relay outputs, 10A each, common potential
- Total maximum load 10A
- Relay lifetime: 30,000 electrical cycles at 16 A / 250 VAC resistive load (85 °C, 1 s on / 9 s off), 1,000,000 mechanical cycles

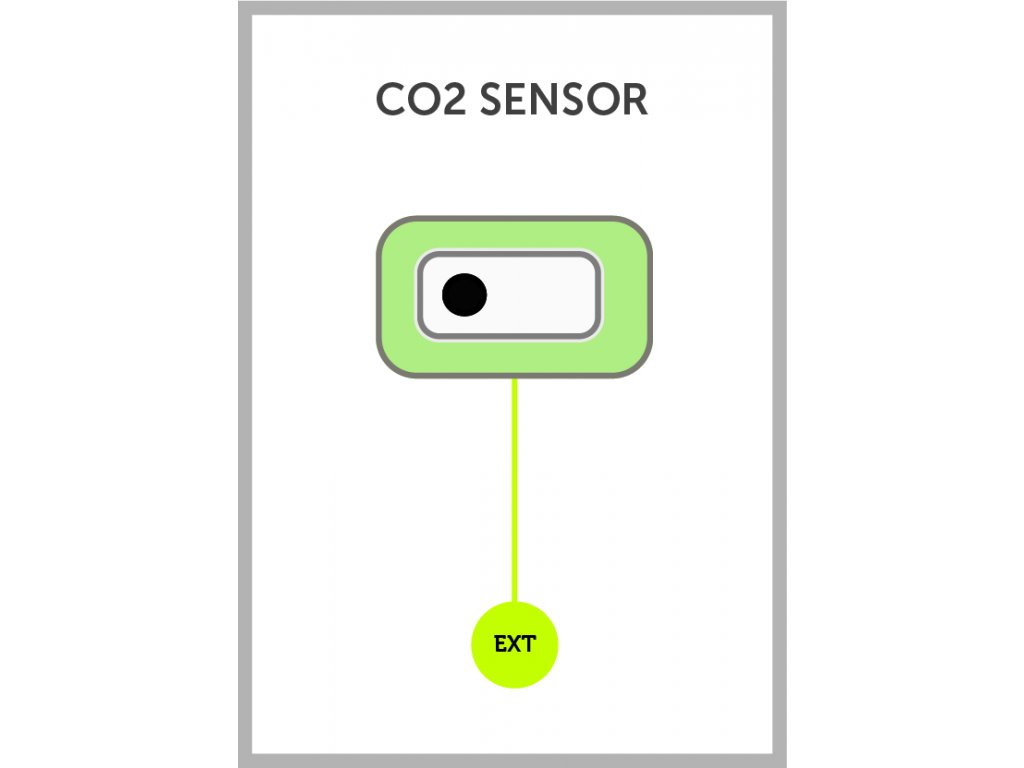

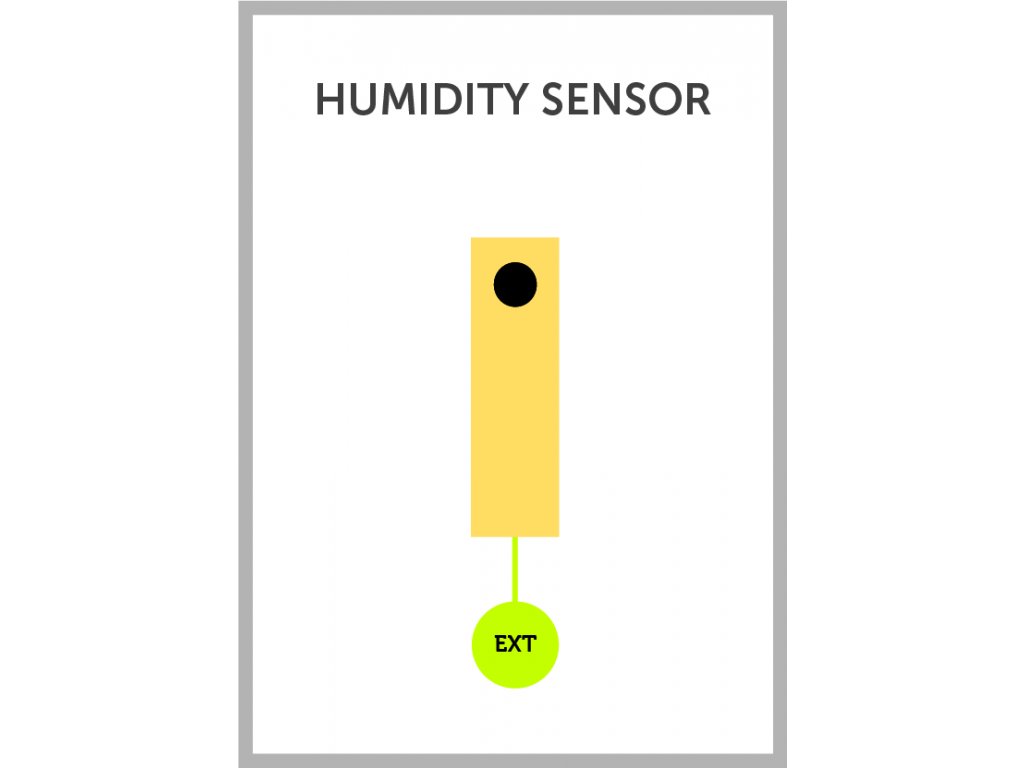

- EXT terminal for connecting CO2 sensors or temperature and humidity sensors
- Power supply 24VDC +-10%
- Relays Hongfa HF32FV-16/24-HCTF (24 V coil, 2800 Ω)
- Consumption from the 24 V supply:
- Both relays off: 1.5 W
- Coil of one closed relay: 0.2 W (24 V² / 2800 Ω)
- Both relays closed: 1.5 + 2 × 0.2 = 1.9 W
- Protection: IP20, operating temperature: -20 to + 55 °C

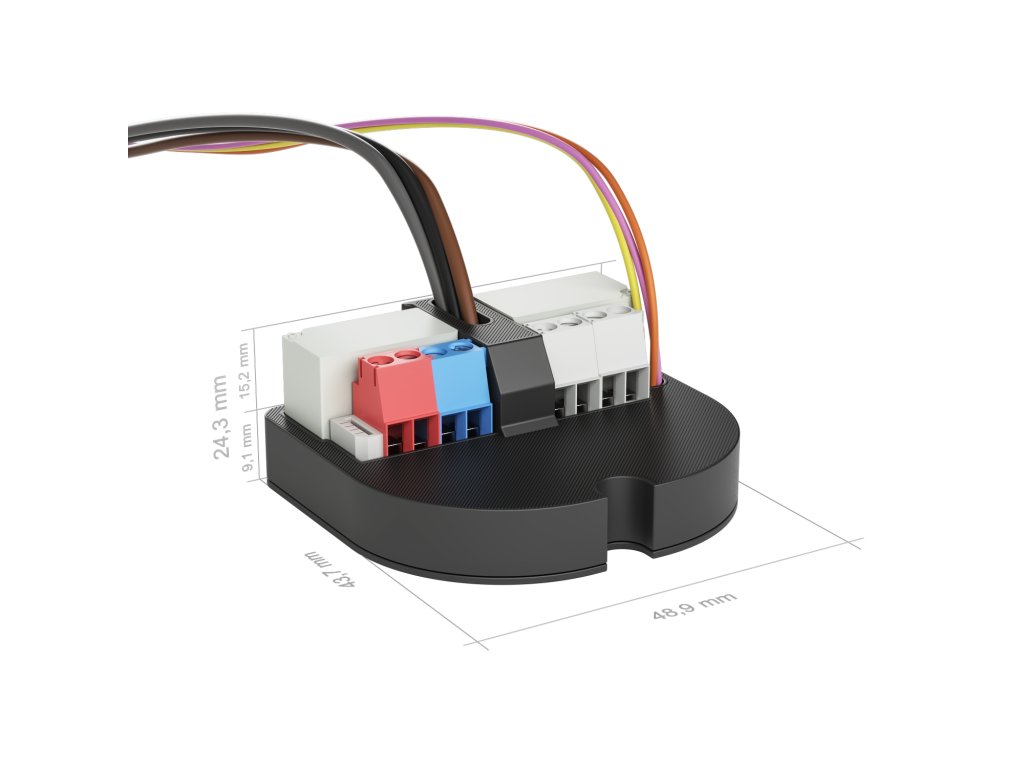

- Flush mount installation into 68 mm junction box. Width 54 mm, height 23 mm.

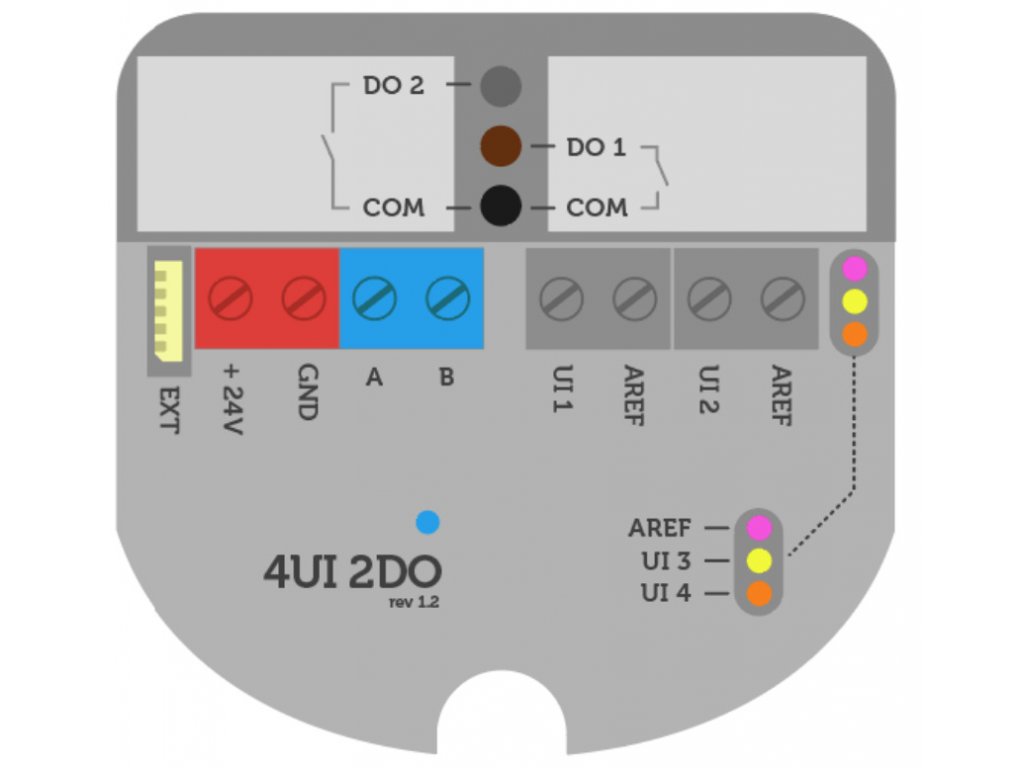

| Connector | Color | Wire | AWG | Torque | Strip | Pins |
|---|---|---|---|---|---|---|
| Power | Red | 0.13–1.3 mm² | 26–16 | 0.2 Nm | 7 mm | +24V, GND |
| Bus | Blue | 0.13–1.3 mm² | 26–16 | 0.2 Nm | 7 mm | Bus A, Bus B |
| Outputs | Grey | 0.13–1.3 mm² | 26–16 | 0.2 Nm | 7 mm | DO 1, COM, DO 2, COM |
| Inputs | Grey | 0.13–1.3 mm² | 26–16 | 0.2 Nm | 7 mm | UI 1, AREF, UI 2, AREF |
