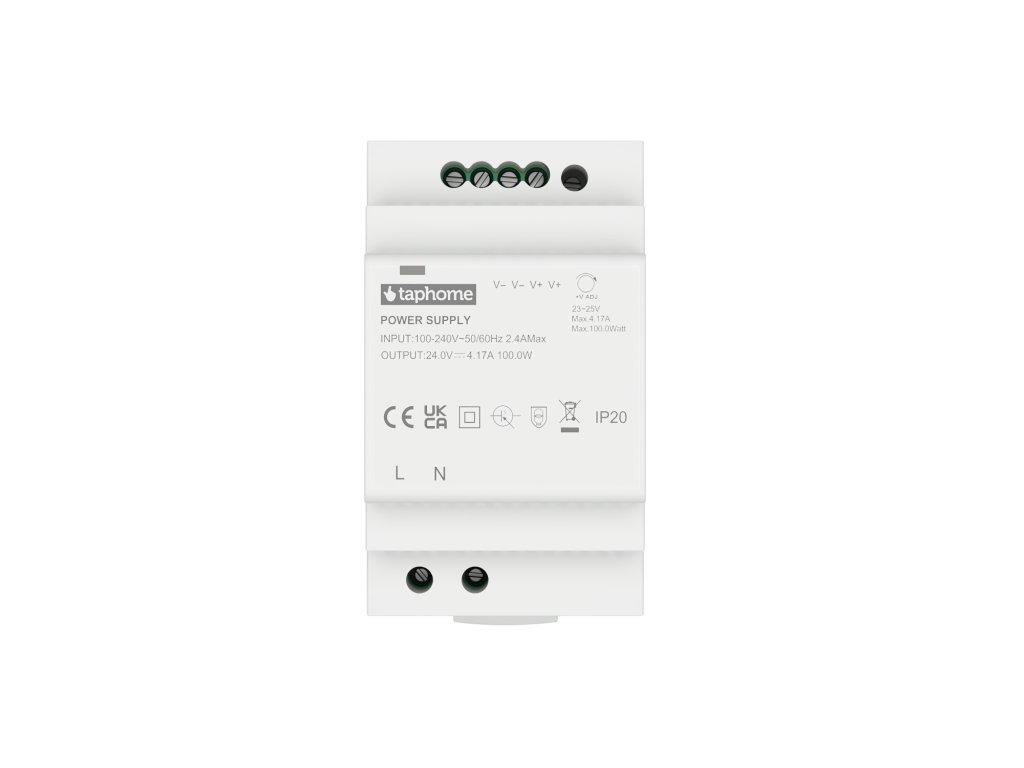

Power Source 24V

Professional DIN rail power supply 24V DC for TapHome and building automation. Available in 3 power variants: 60W, 100W and 150W.

Power
Chosen variant is not available. Reset selected parameters.

In stock (302 pcs) In stock (209 pcs) In stock (74 pcs) Choose variant

Code: TH-PWR-60W-24V TH-PWR-100W-24V TH-PWR-150W-24V Choose variant

Brand: TapHome

€31,37 €35,67 €41,82 from €31,37 €25,50 excl. VAT €29 excl. VAT €34 excl. VAT from €25,50 excl. VAT

Category:	Accessories
EAN:	Choose variant
naskladnenie:	30.10.2024

Professional switching power supply designed for DIN rail mounting. Ideal for powering TapHome systems, smart buildings and industrial automation. Available in three power variants for different installation needs.

Key Features

Universal AC input 90-264V (suitable worldwide)
Stable DC output 24V
High efficiency up to 90.5%
Compact dimensions - ultra slim step-shape design
Class II insulation - no grounding required
Adjustable output voltage (21.6-29V)
Comprehensive protection: short circuit, overload, overvoltage
3-year warranty

Variant Comparison

Parameter	60W	100W	150W
Output current	2.5A	4.17A	6.25A
Efficiency	90%	90%	90.5%
Dimensions (W×H×D)	52×90×58 mm	58×70×90 mm	105×90×58 mm
Weight	190g	270g	300g

Common Specifications


Output voltage	24V DC
Input voltage	90-264V AC / 127-370V DC
Frequency	47-63 Hz
Voltage adjustment range	21.6-29V
Ripple & Noise	150mVp-p
Operating temperature	-20°C to +70°C
Mounting	DIN rail TS-35/7.5 or 15
Protection rating	IP20
Certifications	CE, UKCA
