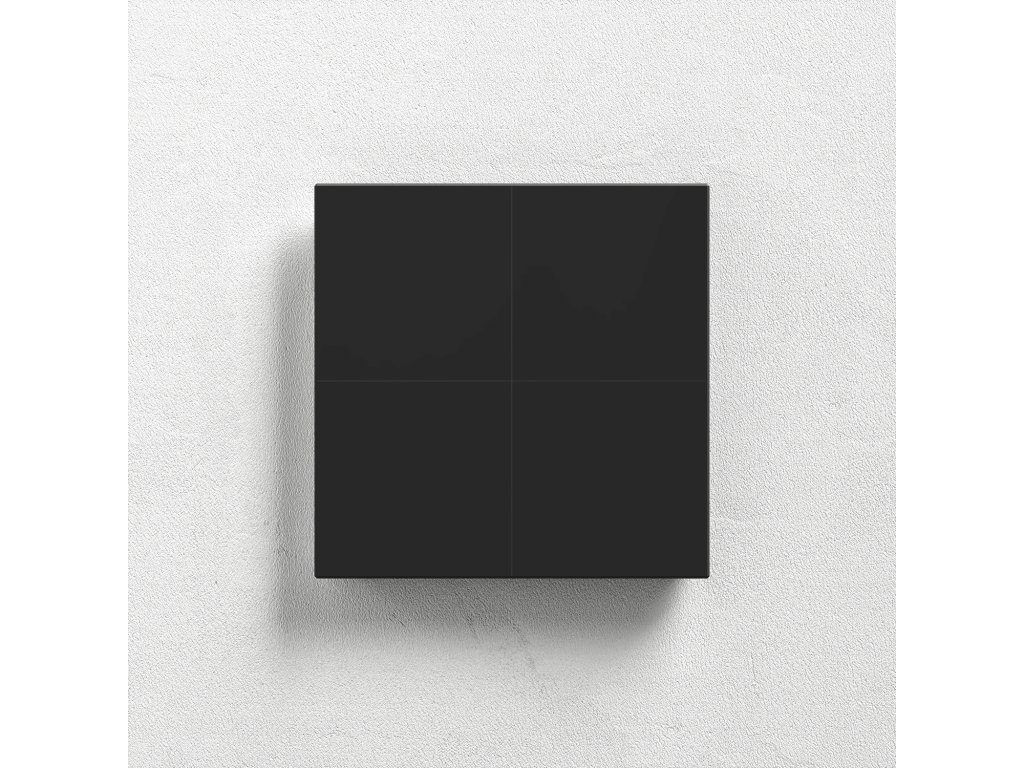

Switch with touch buttons (Generation 2)
The switch is pleasant to the touch and resistant to fingerprints. The buttons are configurable to control light or blinds. Contains temperature and humidity measurement. Dimmable night light from the sides.
Attention: The mounting plate must be ordered separately.
| Category: | Switches, controllers and sockets |
|---|---|
| naskladnenie: | 5.12.2024 |
Features
- Touch control
- Acoustic feedback
- Temperature and relative air humidity sensor

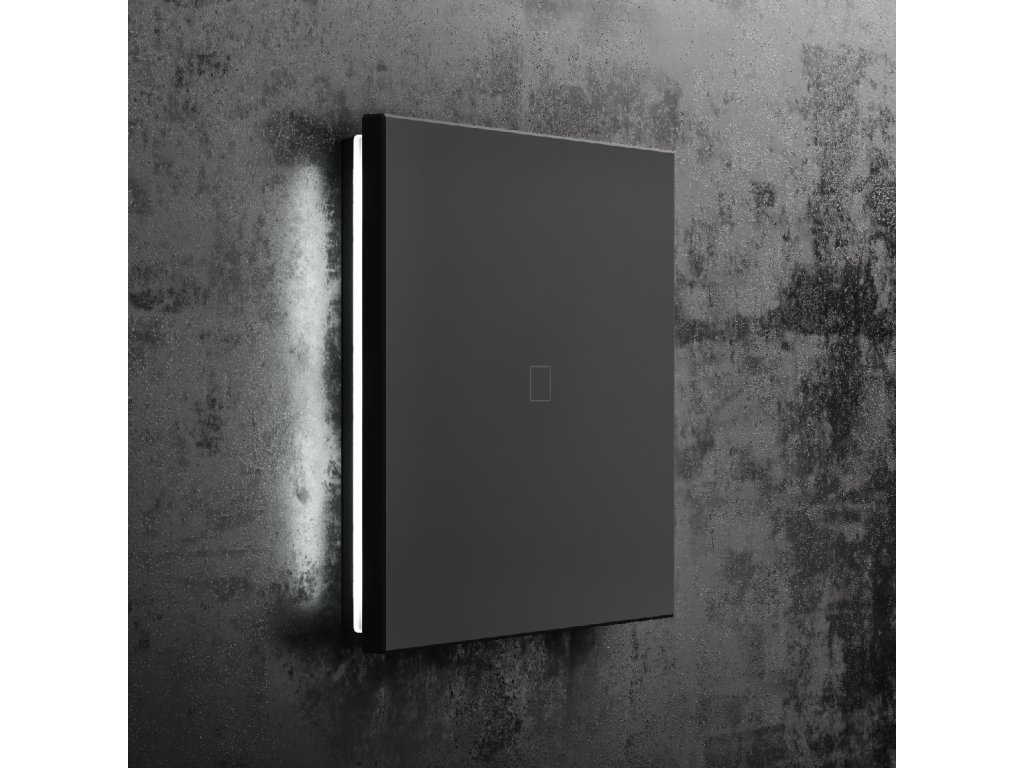

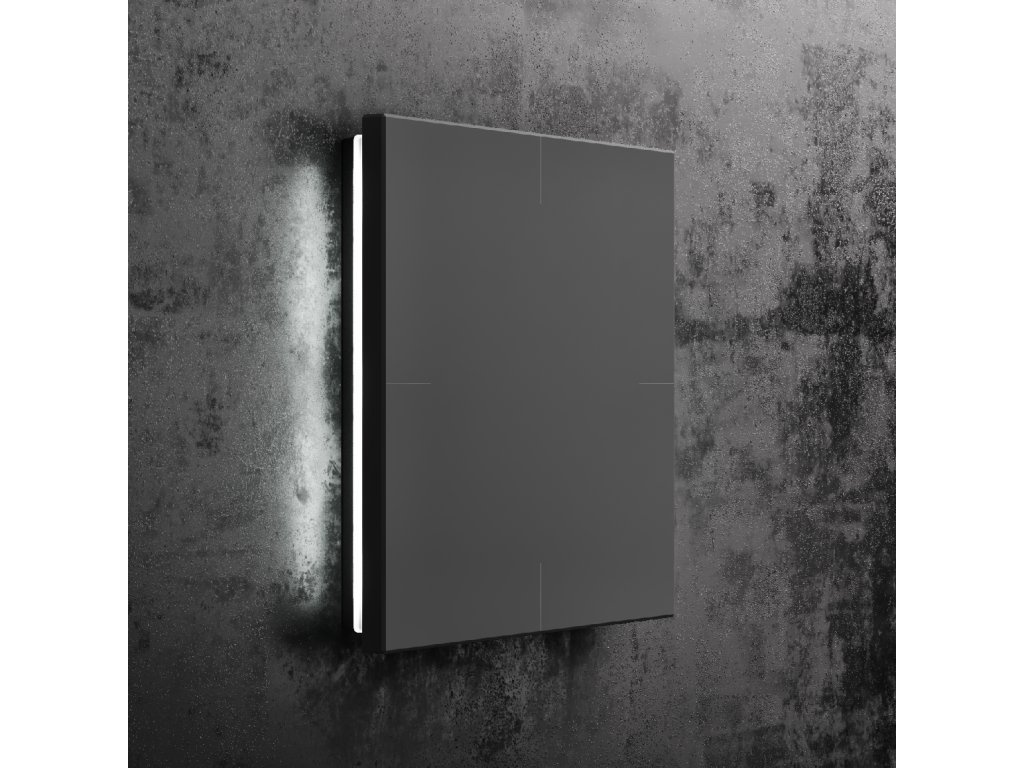

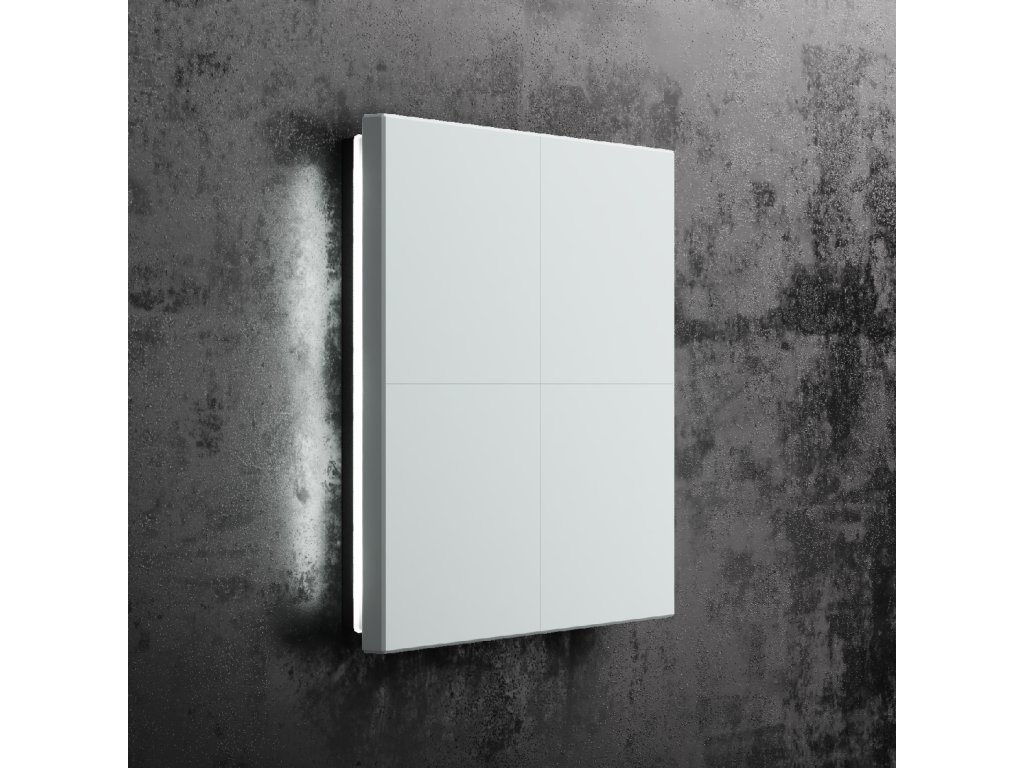

- Dimmable LED light from the sides
- 1 UI input for floor temperature sensor or other additional input
- Dimensions 88x88x12 mm
- It works on the internal TapHome bus with wired power and communication
- Power input max. 0.1 W with the LED off / 0.2 W with the LED on
- Operating temperature 0 to 40 °C
- Installation in a standard junction box for light switches
Materials
The outer surface of the switch is characterized by the use of new generation acrylic resins fixed by the electron beam curing process. At first glance, the surfaces attract attention with their super-matte appearance. They are pleasantly soft to the touch and do not leave fingerprints.

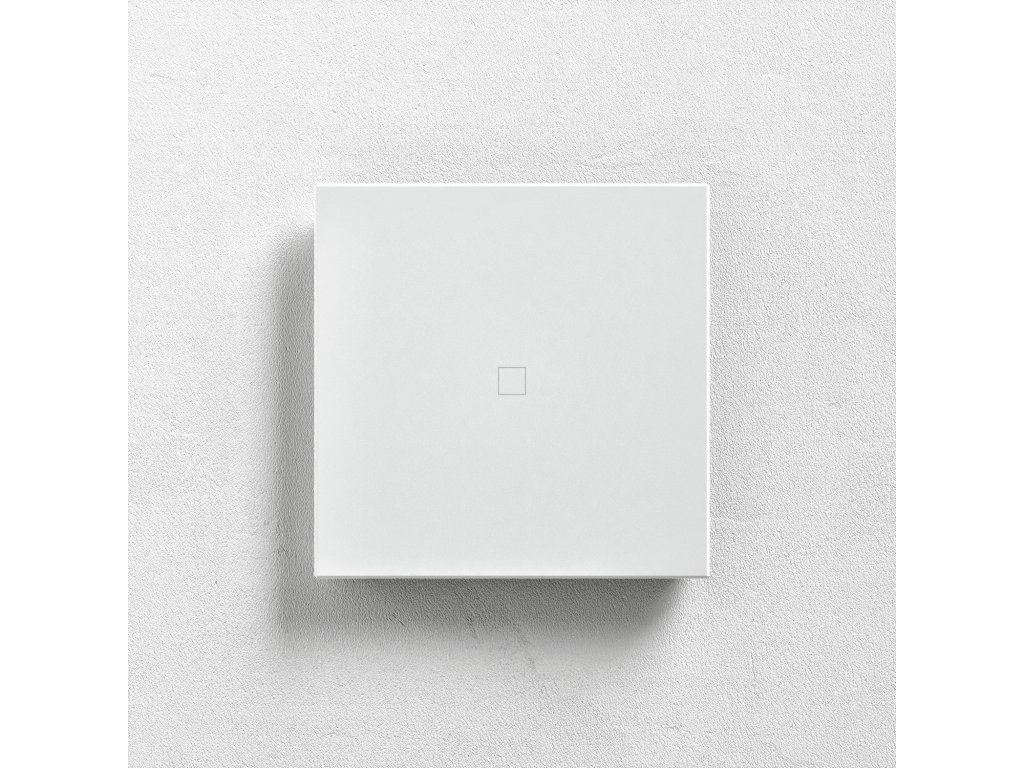

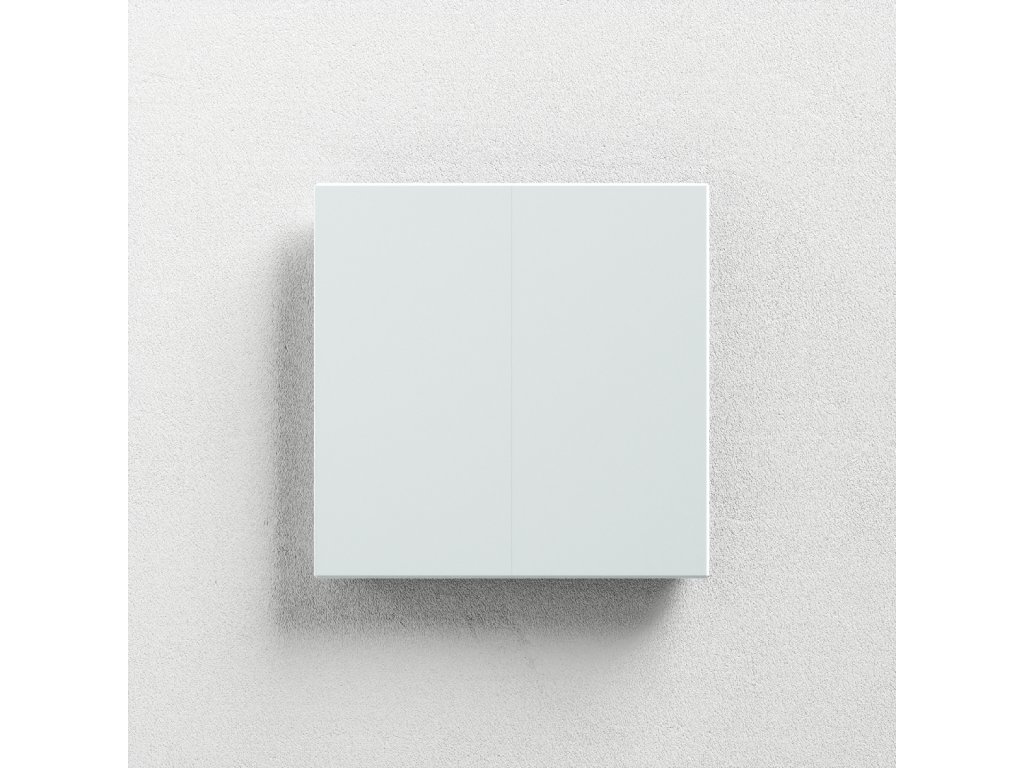

- White: Fenix NTM 0032 Bianco Kos, RAL CLASSIC / 9016

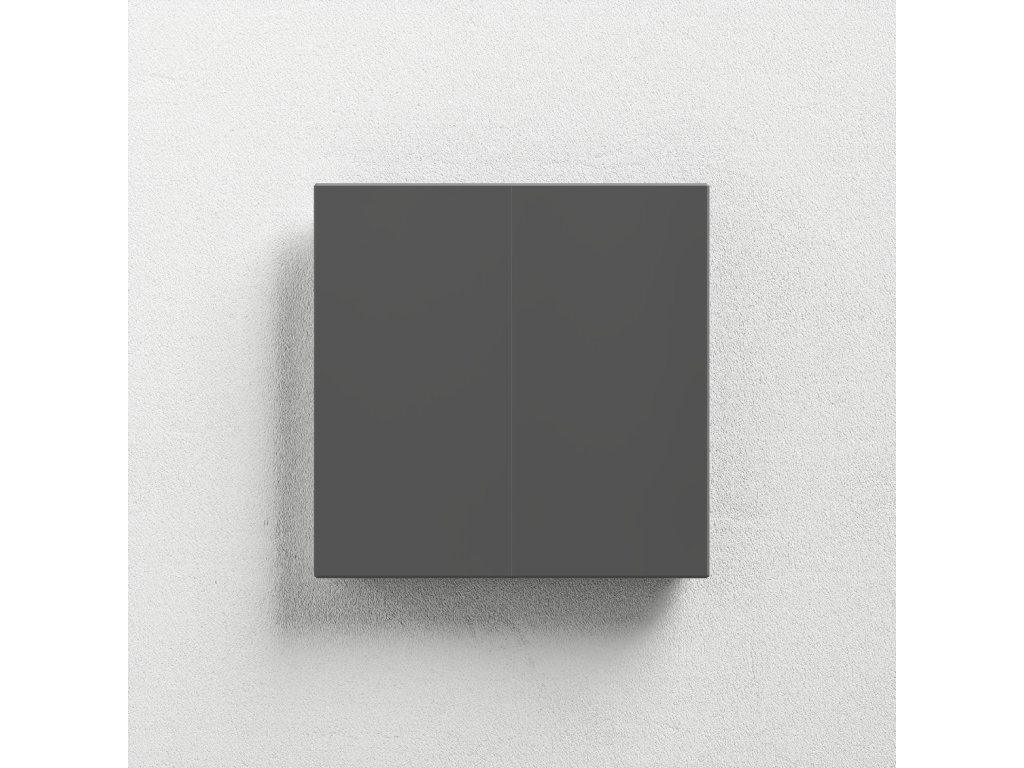

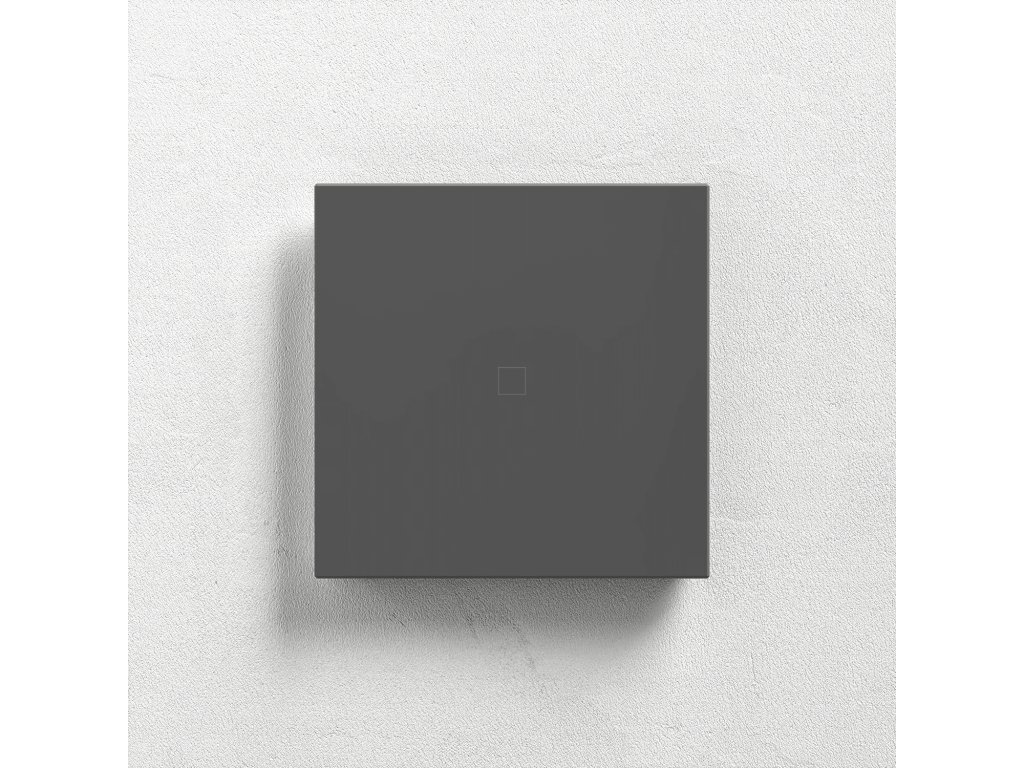

- Anthracite: Fenix NTM 0724 Grigio Bromo, RAL CLASSIC / 7012

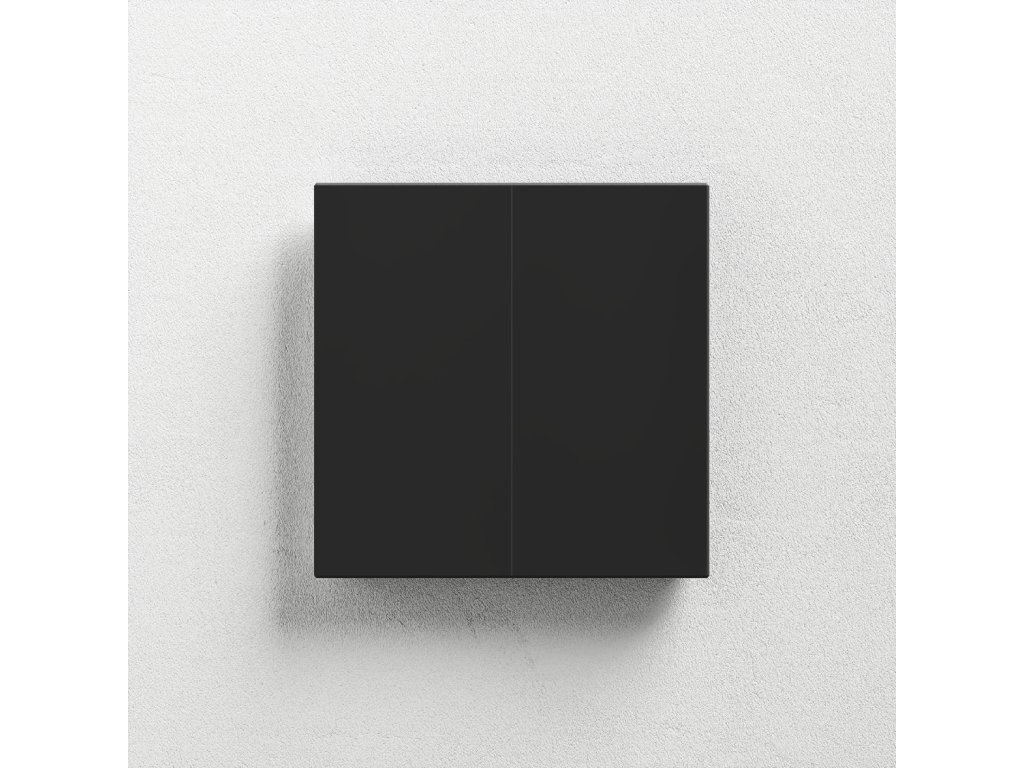

- Black: Fenix NTM 0720 Nero Ingo, RAL DESIGN / 000 25 00
Installation and Disassembly
Installation: First, secure the installation frame onto the KU installation box, ensuring that the arrow labeled “TOP” points upwards and the ventilation openings are facing downwards. Then, snap the product onto the installation frame by first inserting the hooks on the top of the product into the frame, and then gently pressing to secure the bottom part.
Disassembly: Insert a narrow flathead screwdriver into the small notch on the hook at the bottom of the installation frame. Gently pry the hook out of its socket and hold it in place with your hand to prevent it from snapping back into its original position. Repeat this process on the hook on the other side, which will release the bottom part of the product, allowing you to remove it completely.
