Controller with display
Aj universal input device serving as a thermostat, blinds controller, light switch and much more.
Attention: The mounting plate must be ordered separately.
| Category: | Controller with display |
|---|---|
| naskladnenie: | 30.5.2025 |
There are 3 variants to choose from:

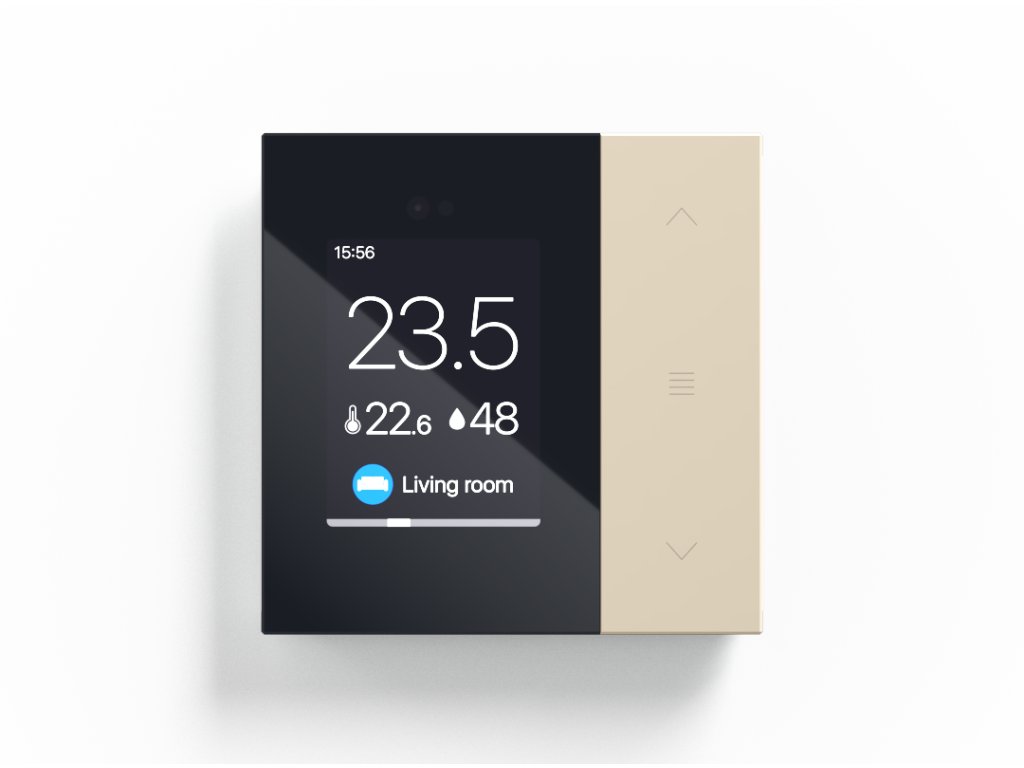

Multi-zone – Controls multiple functions using a single controller. In addition to the up and down arrows, it also has a central menu for switching between functions.

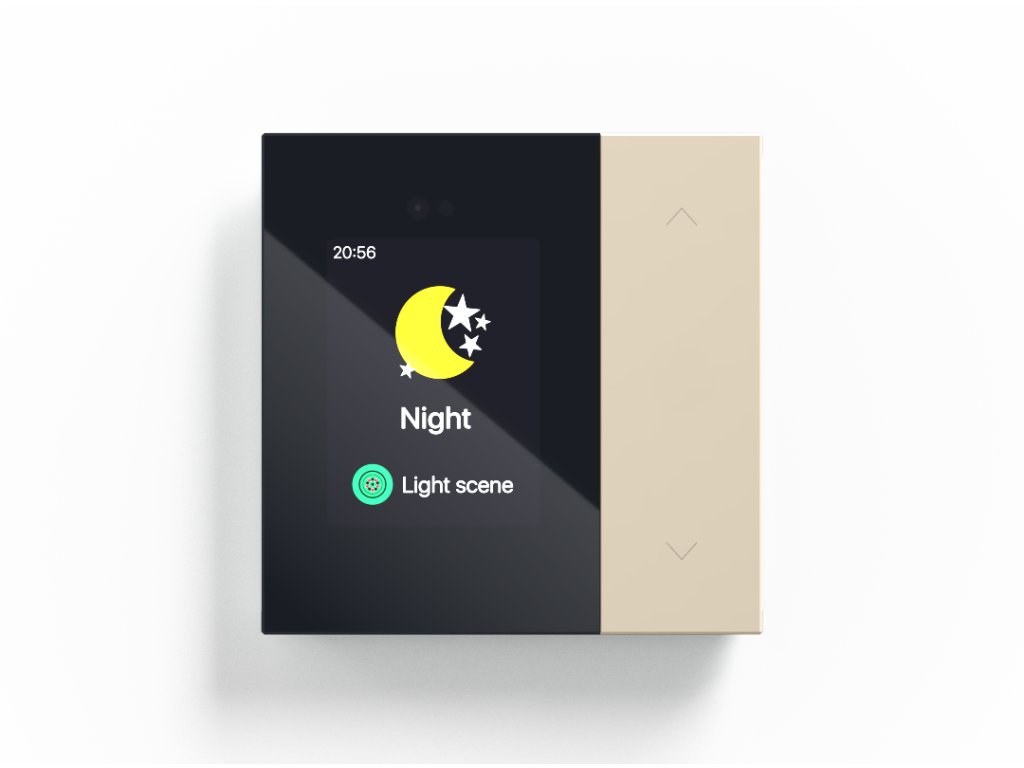

Single-zone – More suitable if you plan to control only one function (e.g., just blinds, just lights...)

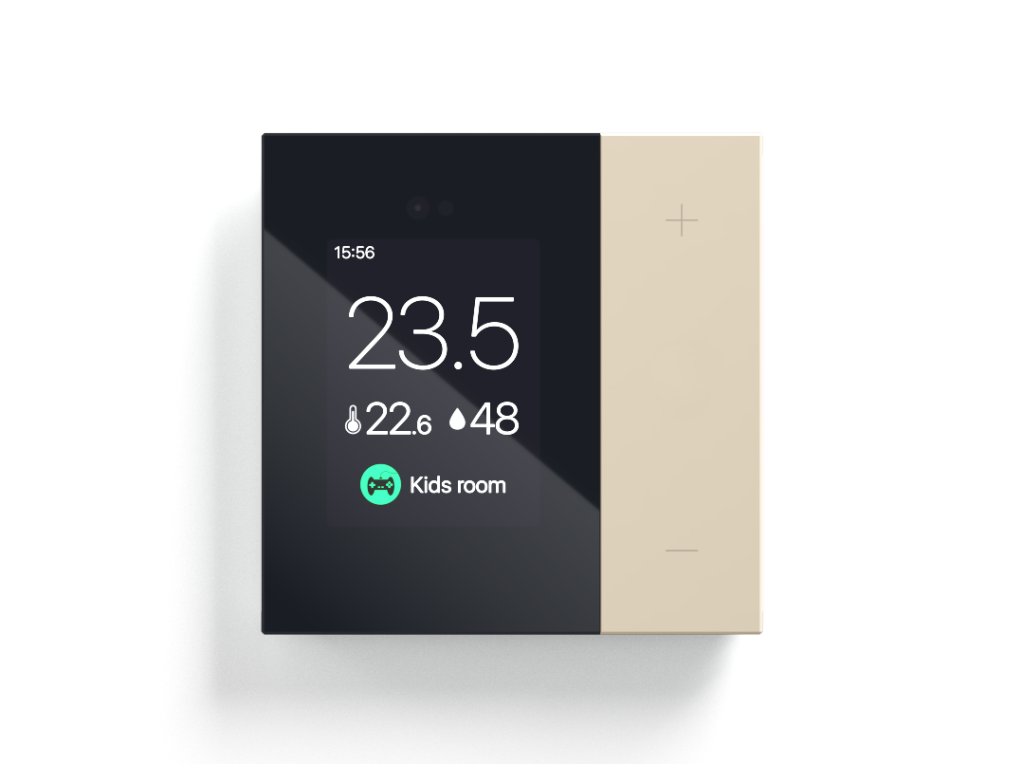

Thermostat – The simplest version. It is used only for temperature control via plus and minus buttons.
Features
- The maximum number of zones or functions is 10
- Room temperature sensor
- Relative air humidity sensor
- Proximity sensor
- Brightness sensor for automatic display intensity adjustment
- Terminal for additional floor temperature sensor or other input
- It works on the internal TapHome bus with wired power and communication
- Power consumption max 4.2W
- Operating temperature 0 to 40 C
- Installation in a standard box for light switches
- Dimensions 8.8 cm x 8.8 cm x 1.2 cm
- Configuration through the application, not directly on the device
Available materials
- White: Material Fenix NTM 0032 Bianco Kos, RAL CLASSIC / 9016
- Anthracite: Material Fenix NTM 0724 Grigio Bromo, RAL CLASSIC / 7012
- Black: Material Fenix NTM 0720 Nero Ingo, RAL DESIGN / 000 25 00
Installation and Disassembly
Installation: First, secure the installation frame onto the KU installation box, ensuring that the arrow labeled “TOP” points upwards and the ventilation openings are facing downwards. Then, snap the product onto the installation frame by first inserting the hooks on the top of the product into the frame, and then gently pressing to secure the bottom part.
Disassembly: Insert a narrow flathead screwdriver into the small notch on the hook at the bottom of the installation frame. Gently pry the hook out of its socket and hold it in place with your hand to prevent it from snapping back into its original position. Repeat this process on the hook on the other side, which will release the bottom part of the product, allowing you to remove it completely.
