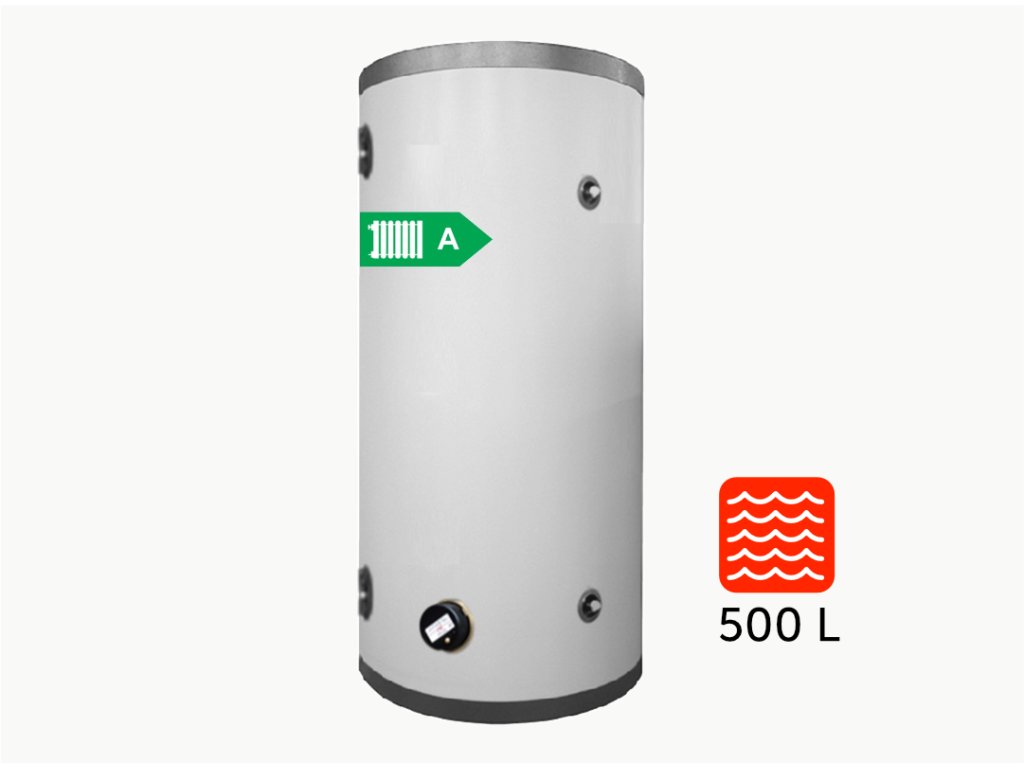

Tank for domestic hot water, 500 L

DHW storage tank.

Properties

• Inner tank: 1.5 mm stainless steel SUS304
• Diameter of the inner tank: Ø 600 mm
• External tank: Ø 700 Sheet steel
• Height: 1828 mm
• Insulation: 50 mm
• 8x connection: G 1 1/4”
• 2x connection: G 1/2” (sensor tube)
• 1x vent: G 3/4” (drain cock)
• Max. tank operating pressure: 10 bar
• Max. tank operating temperature: 95 °C
• Color: White
• Backup electric coil
• Net weight: 88 kg

 5 year warranty.

The storage tank with indirect heating meets the highest requirements of PED (Pressure Equipment Directive) 97/23 / EC / CE. Thanks to the advanced welding technology, the boilers have an internationally high level of lasting quality and a very elegant appearance.
