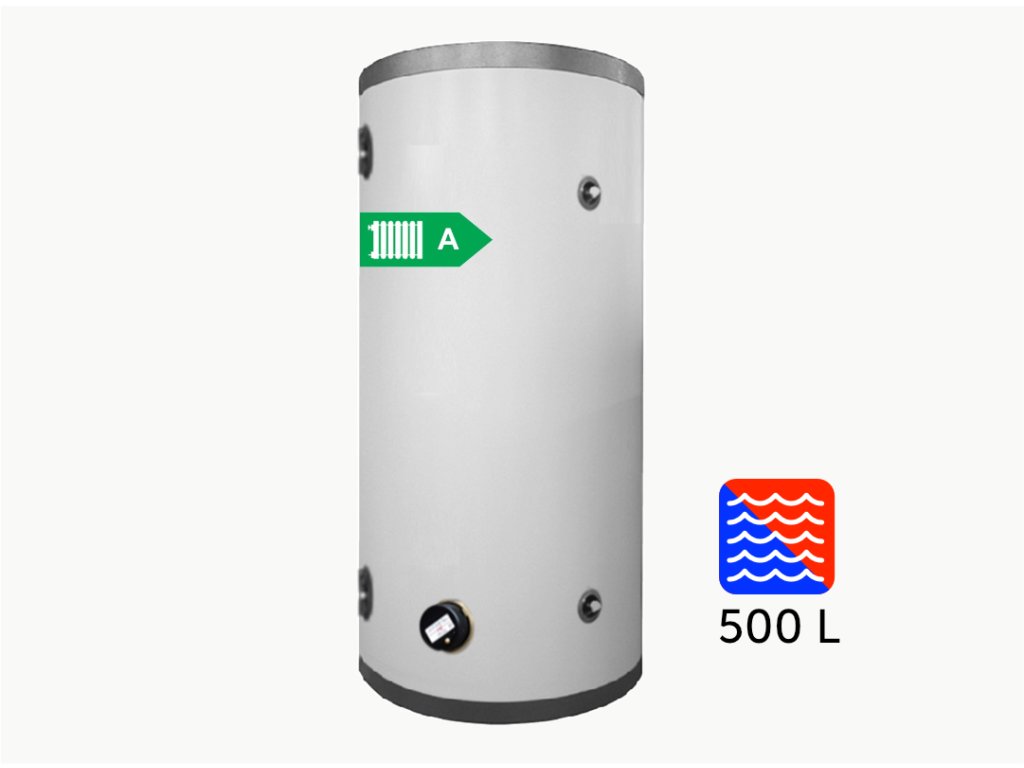

Storage tank for hot and cold water, 500 L
Storage tank with a special thermal insulation layer for hot and cold water.
Category: | Integrated heat pump |
---|
Storage tank with a special thermal insulation layer for hot and cold water.
Properties
- Inner tank: 1.5 mm stainless steel SUS304
- Diameter of the inner tank: Ø 600 mm
- External tank: Ø 700 Sheet steel
- Height: 1828 mm
- Insulation: 50 mm polyurethane foam
- 8x connection: G 1 1/4”
- 2x connection: G 1/2” (sensor tube)
- 1x vent: G 3/4” (drain cock)
- Max. tank operating pressure: 10 bar
- Max. tank operating temperature: 95 °C
- Color: White
- Backup electric coil
- Net weight: 88 kg
5 year warranty.
The storage tank with indirect heating meets the highest requirements of PED (Pressure Equipment Directive) 97/23 / EC / CE. Thanks to the advanced welding technology, the boilers have an internationally high level of lasting quality and a very elegant appearance.
