Rain Volume Sensor

Features

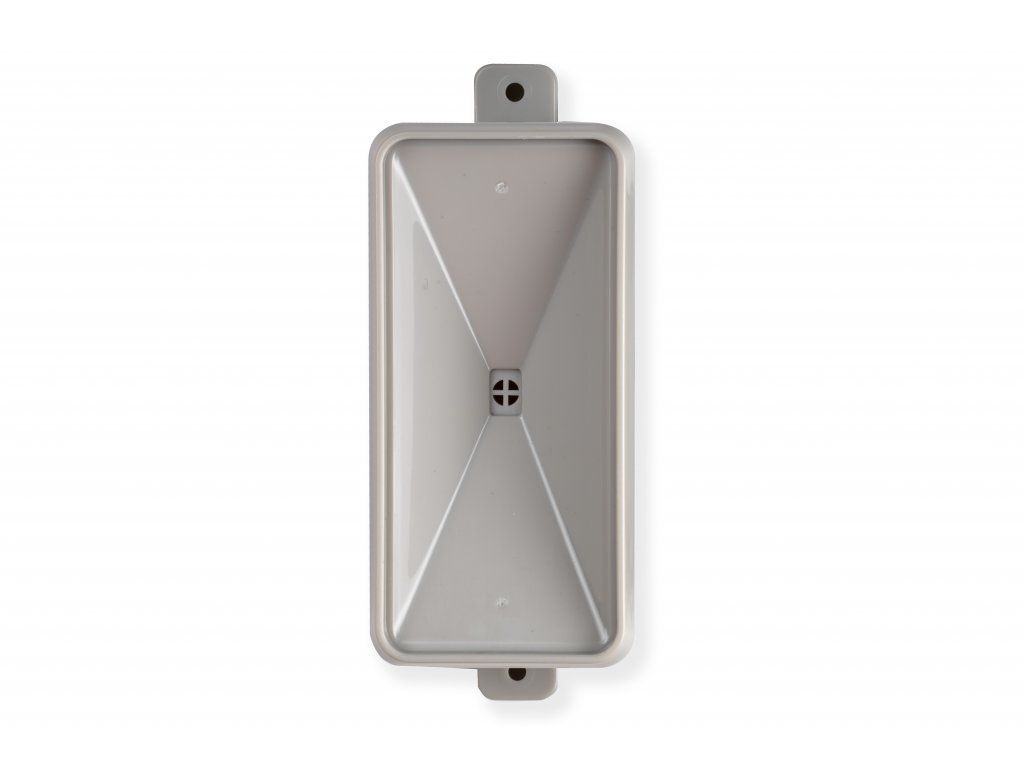

• Tipping-bucket, self-emptying rain collector for measuring rainfall volume
• 1 impulse = 0.3 mm rainfall (for rain intensity lower than 1000 mm/hour)
• Measurement range 0–1000 mm/hour
• Connection: 1 universal input (UI) in pulse counter mode
• IP55 rating, operating temperature −20 to +70 °C
• Dimensions 145 × 80 × 220 mm, distance between the installation holes 13.5 cm

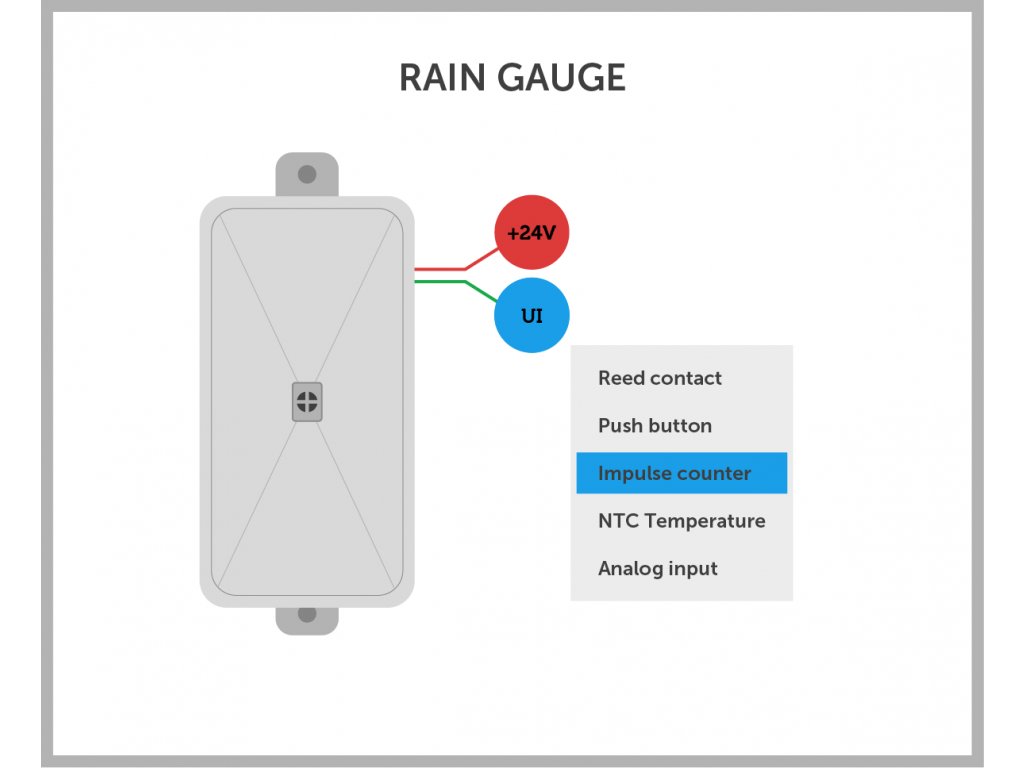

Wiring

• Red wire to +24 V
• Green wire to any UI input of a TapHome module (24UI, Core UI, 2UI, 6UI/6OC…)

Mount the rain gauge horizontally (check with a spirit level) and leave free space underneath so the tipping mechanism can empty itself.

Automatic irrigation

In the TapHome app you enable the input as a pulse counter and add the Rain Gauge virtual device. You get rainfall statistics for the last 3 and 48 hours, which you can use as a limiting condition in the weekly schedule — after heavy rain the irrigation skips itself.
