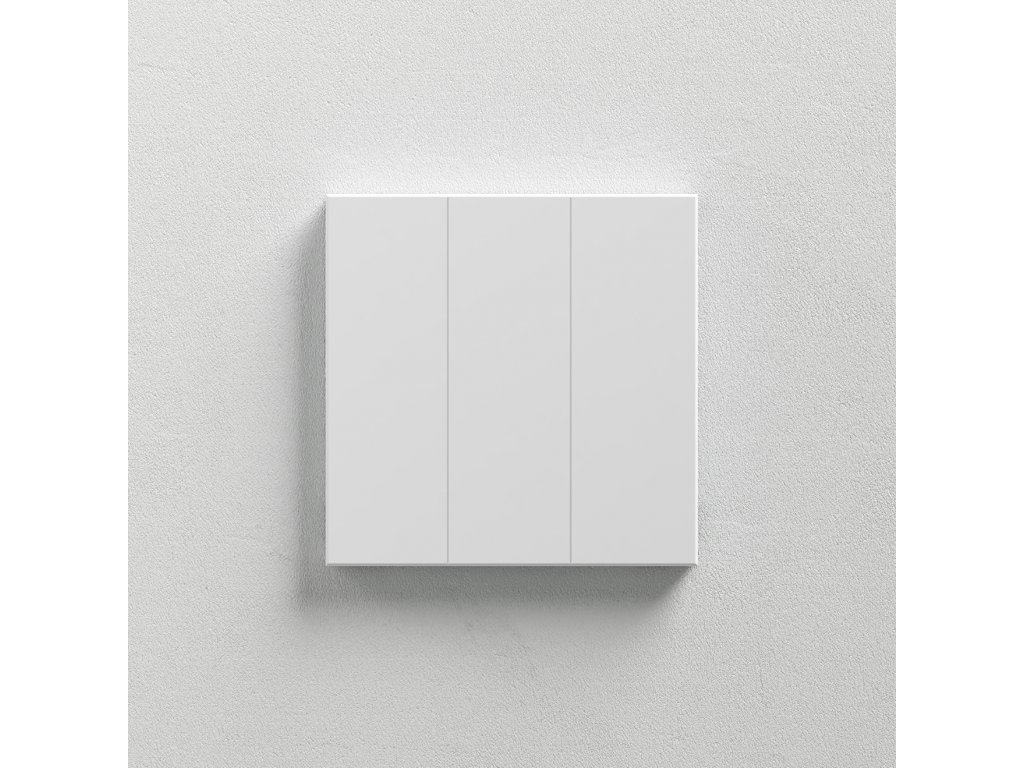

Switch with touch buttons (Generation 1)
Stylish and functional. With low light reflectivity, the switch is opaque, soft touch and anti-fingerprint. 5 or 6 inputs are configurable for light or blinds control. It includes temperature and humidity measurement. Dimmable night light from the bottom.
| Category: | Switches, controllers and sockets |
|---|---|
| naskladnenie: | 20.11.2024 |
Features
- Touch controlled
- Acoustic feedback
- 5 or 6 digital inputs
- Temperature and relative air humidity sensor

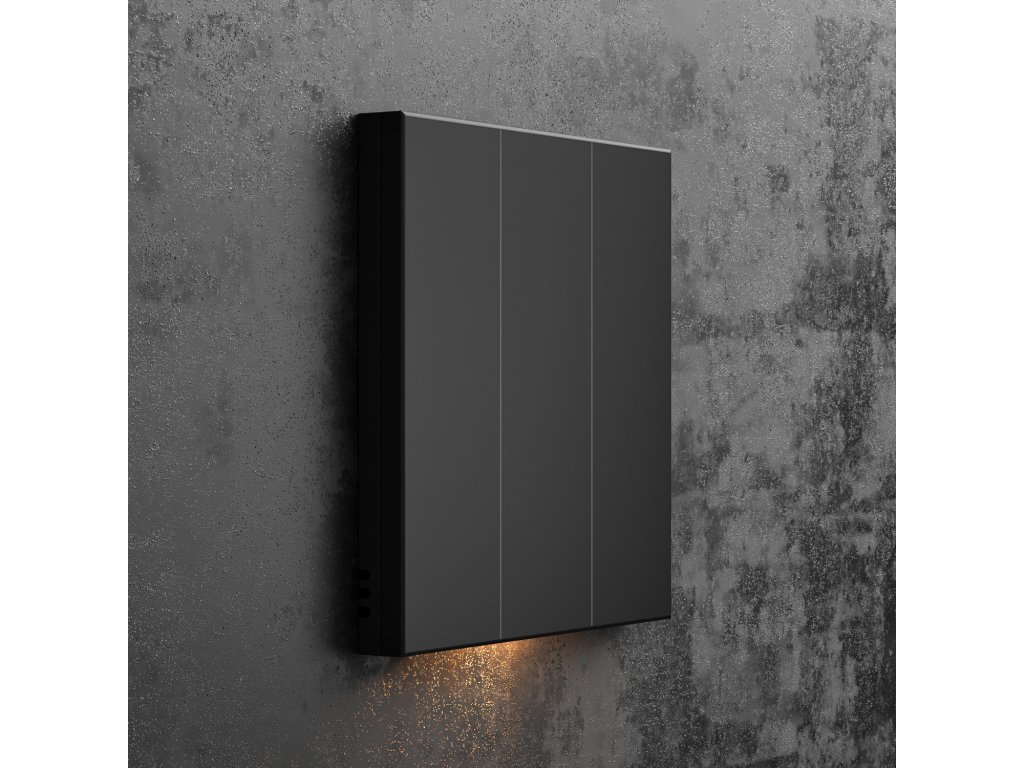

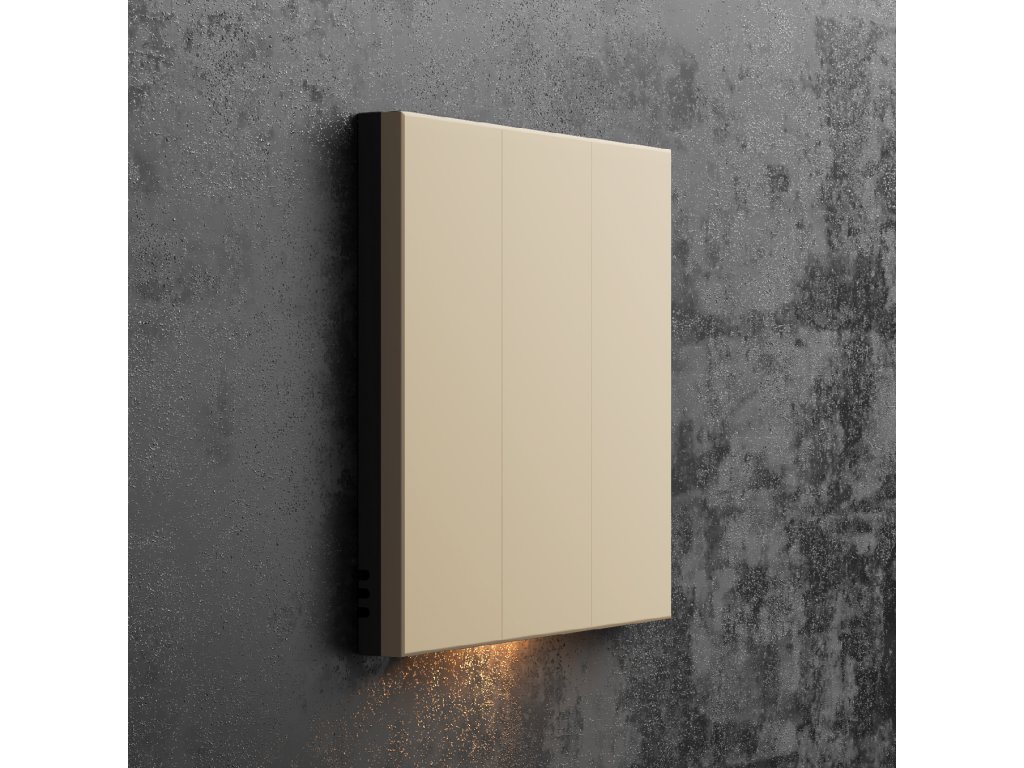

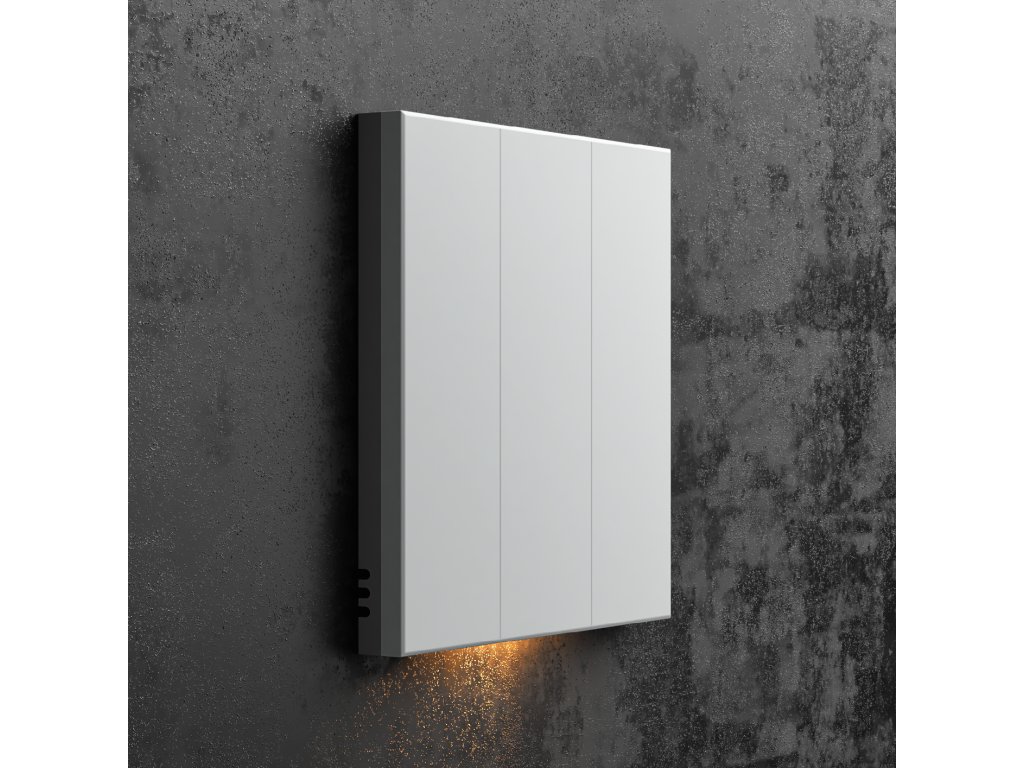

- Dimmable LED light from bottom, 2700 Kelvin
- 1 UI input for floor temperature sensor
- Dimensions 8x8x0,8 cm
- Operates on TapHome internal bus with wired power supply and communication
- Power consumption max 0.1W with LED off / 0.2W with LED on
- Operating temperature 0 to 40 °C
- Installation into standard junction box for light switches
Materials
- White: Fenix NTM 0032 Bianco Kos, RAL CLASSIC / 9016

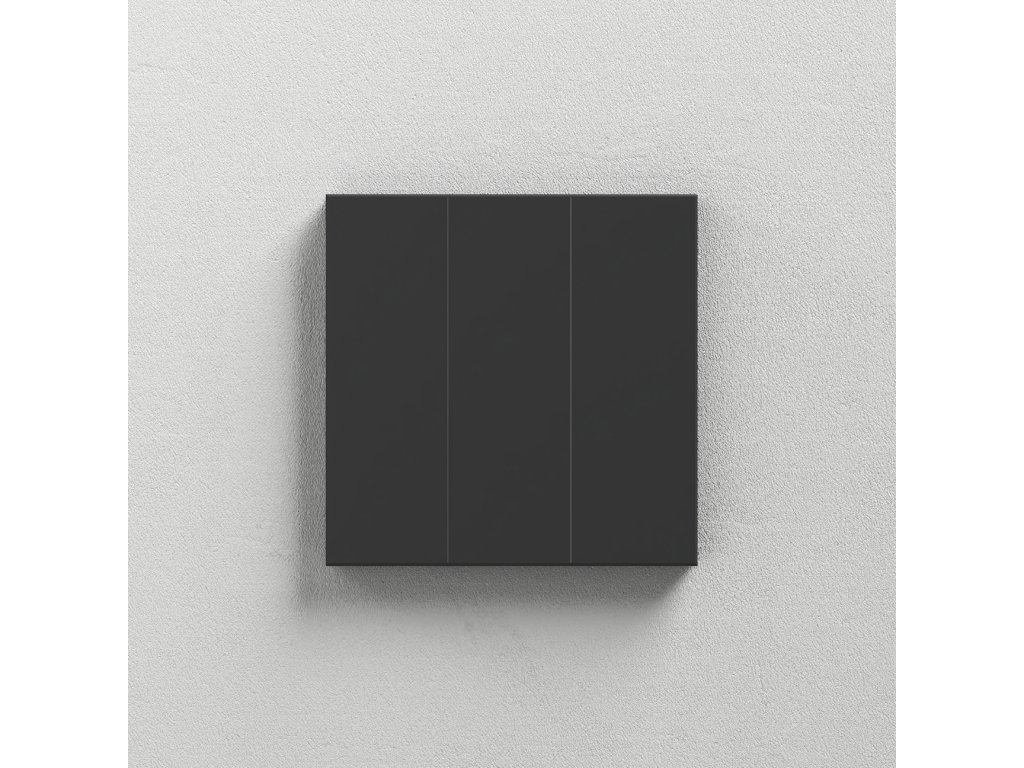

- Anthracite: Fenix NTM 0724 Grigio Bromo, RAL CLASSIC / 7012

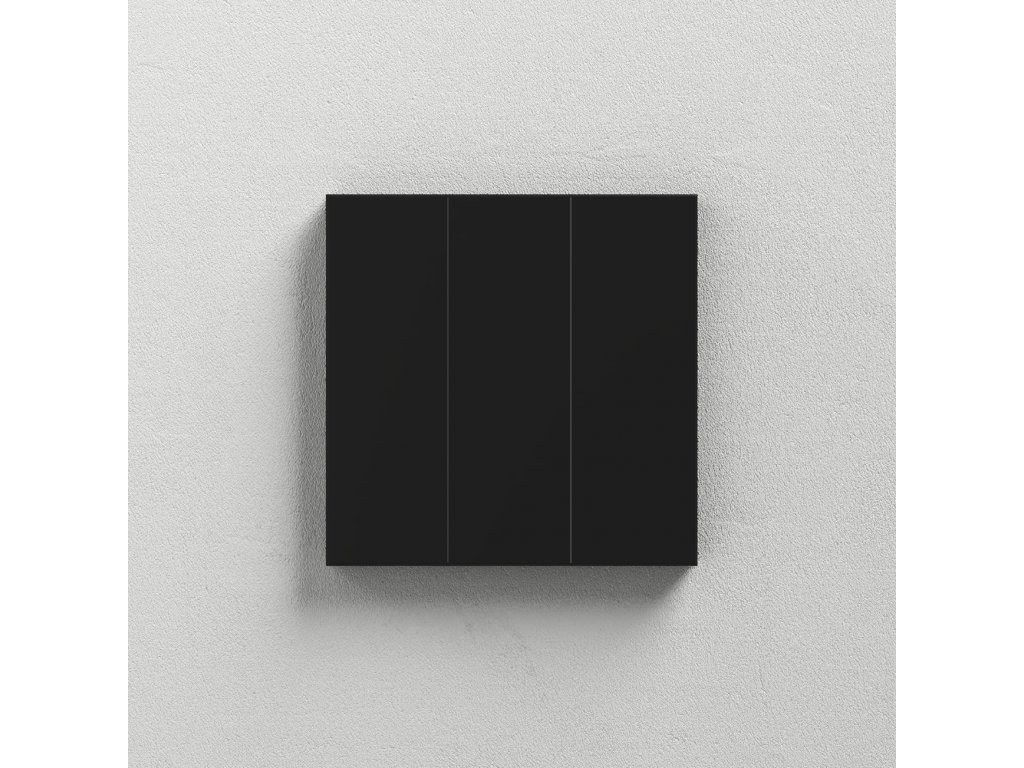

- Black: Fenix NTM 0720 Nero Ingo, RAL DESIGN / 000 25 00
Wiring scheme
