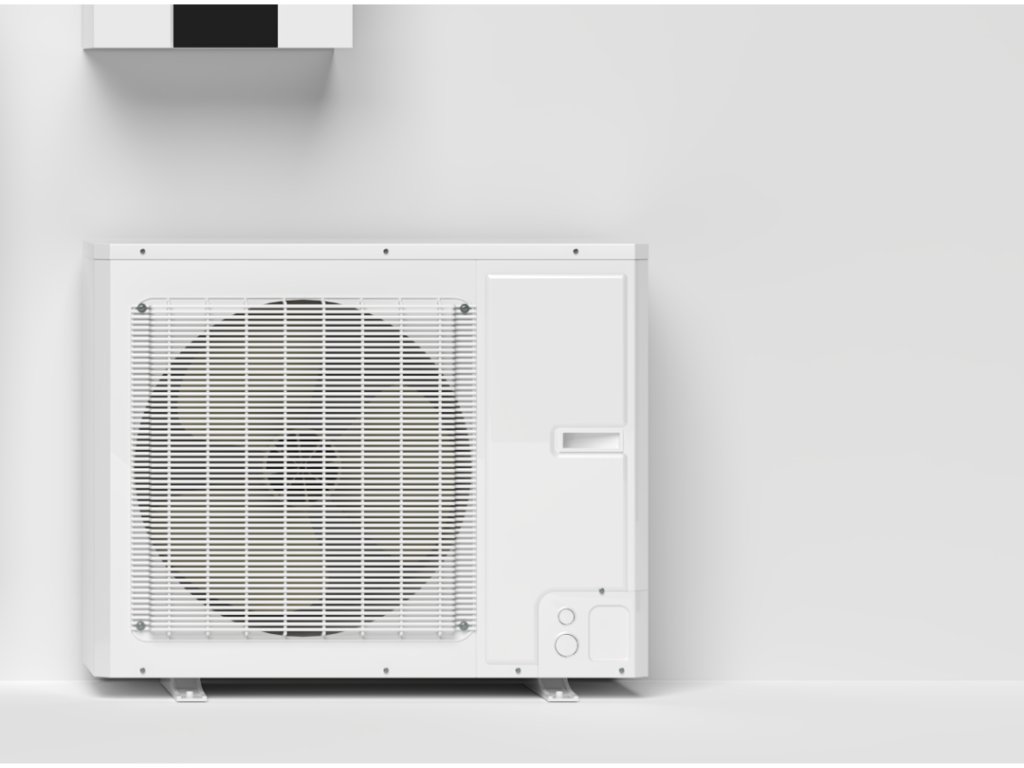

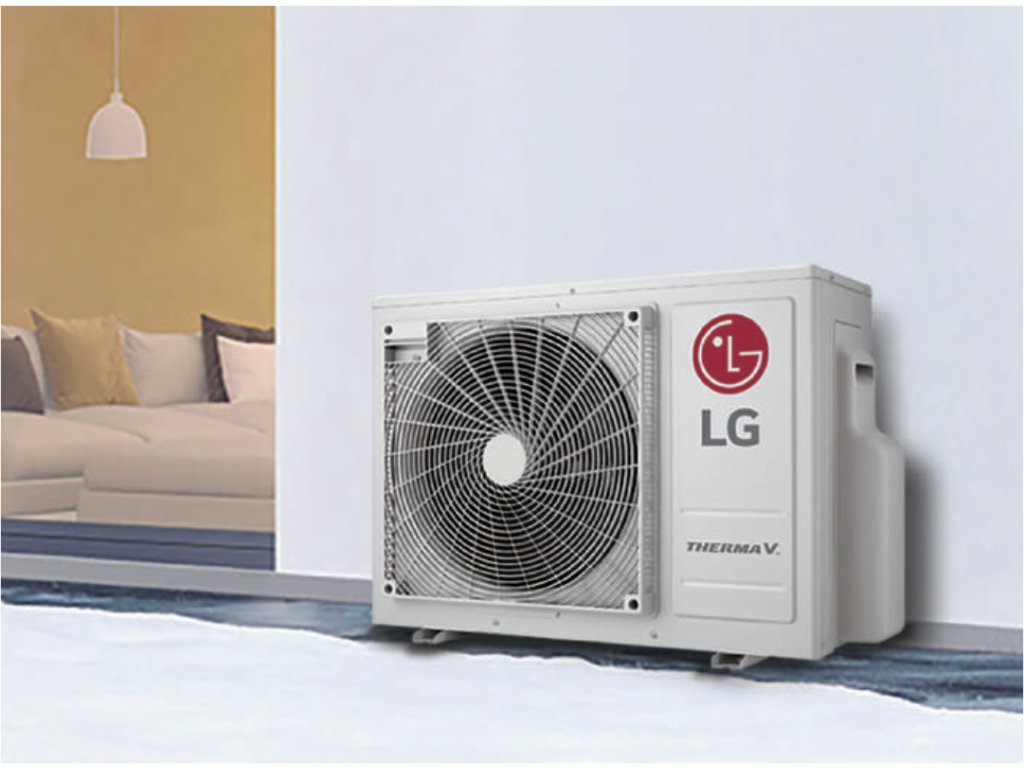

LG Therma V heat pump
Top LG heat pump in Split or Monoblock design. Power from 5.5 to 16 kW.
| Category: | Integrated heat pump |
|---|
The supply of LG heat pumps is ensured by a certified LG partner, allowing the warranty on the heat pump to be extended up to 7 years.
The recommended price for the supply and installation of the heat pump is 1167 Euros excluding VAT.
Brochure: Heat pump [SK]
First integrated LG / TapHome heat pump
In family houses, we often see unsuitable heating systems – zonal regulation does not work well, the heat pump is not used for cooling, and photovoltaic surplus is not utilized. That's why we decided to develop our own solution.
Energy Optimization
The combination of TapHome control with LG heat pump and top-tier hot and cold water storage tanks brings maximum use of self-generated energy from renewable sources. Pre-programmed smart rules adjust the set points in the storage tanks according to current and forecasted solar gains.
(1) Energy from solar panels is stored in the battery storage
(2) When the batteries are charged, the excess energy is stored in the DHW tanks and hot and cold water tanks. The user can precisely monitor temperatures and graphs in the TapHome app.
(3) Excess energy is sent back to the grid.
Advantages
 |
 |
 |
 |
| Storage of excess into the accumulator tank | Floor cooling included | Modular system - ability to connect multiple heat sources | Connection to photovoltaics and weather forecasting |
- Optimization of heat pump efficiency
- Fewer heat pump starts
- Optional ECO mode thanks to solar gain prediction
- Seamless zonal control
- Support for: floor cooling / ceiling cooling / air cooling (fan coil)
- Easy connection of an additional pump group and supplementary heat source
Heat and cool production from photovoltaic surpluses
Thanks to accumulator tanks, most of the heating and cooling shifts to times when there are solar gains, and electricity is free. The stored energy is then used at night or during cloudy days.
(1) Electricity production from photovoltaics
(2) House consumption (without using accumulator tanks)
(3) Optimized house consumption
Optimization of heat pump efficiency
Since air temperatures are higher during the day in winter, we can maximize the operation of the heat pump during this time thanks to accumulation. This increases the heat pump's efficiency (COP). It also results in reduced noise from the heat pump at night. In summer, the heat pump's efficiency is higher at night, but the surpluses from photovoltaics compensate for this.
Fewer heat pump starts
This helps extend the life of the compressor in the heat pump. Longer cycles also ensure higher efficiency compared to the constant switching of the heat pump.
Optional ECO mode thanks to solar gain prediction
Adapting to weather forecasts allows us to delay heating before sunrise and only activate the heat pump during photovoltaic electricity production. Thanks to the accumulated heat in the floor, the ECO mode is almost unnoticeable.
(1) Water temperature in the tank
(2) Water temperature in the floor
(3) Room temperature
(-) Heat extraction from the accumulator tank
(+) Storage of surpluses into the accumulator tank
( x ) ECO mode active: slight reduction in comfort if sunny weather is forecasted
Comparison of TapHome solution with other setups
| Options | Heat pump without control | Heat pump with control | Heat pump with control and accumulator tank |
|
Whole house floor heating |
Yes 1) |
Yes 1) |
Yes |
|
Zonal floor heating |
No 1) 2) |
Yes 1) |
Yes |
|
Cooling with fan coils |
No |
No |
Yes |
|
Floor cooling |
No 1) 3) 4) 7) |
Partially 1) 3) 4) |
Yes |
|
Ceiling cooling |
No 1) 3) 4) 7) |
Partially 1) 3) 4) |
Yes |
|
DHW savings |
No |
Partially 5) |
Yes 6) |
|
Heating / cooling savings |
No |
No |
Yes 6) |
|
Longer heat pump lifespan |
No 3) |
No 3) |
Yes |
1) Unstable temperature due to heat pump hysteresis.
2) Necessity of having multiple open circuits
3) Frequent starts of the heat pump reduce its performance and lifespan
4) Risk of condensation on the ceiling and/or floor without a three-way valve, as the heat pump cannot produce mildly cool water
5) Insufficiently large storage tank
6) Maximum savings when combined with battery storage
7) Inability to control the water outlet temperature of the heat pump
LG Heat Pump
LG Heat Pump
Government Subsidies
LG THERMA V heat pumps are registered in the SFŽP (CZ) and SIEA (SK) subsidy programs.
The subsidy programs apply to both existing housing and new constructions.

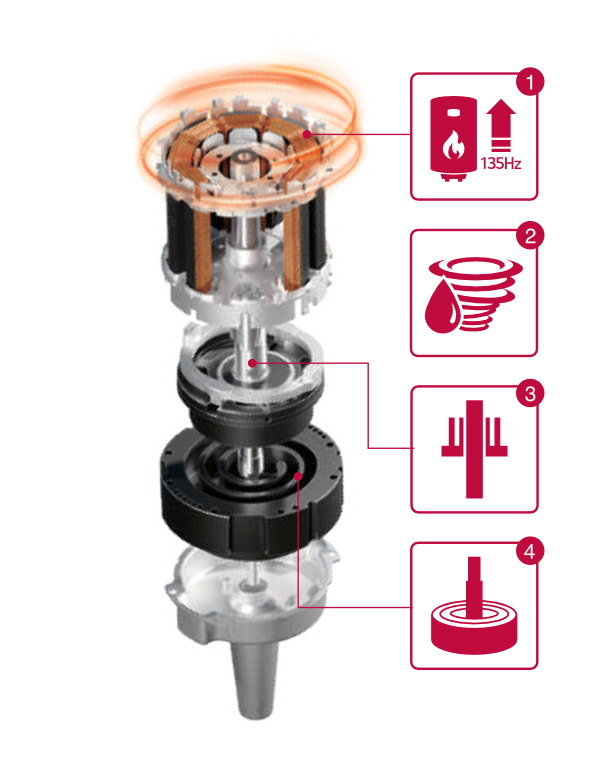

Revolutionary LG Compressor Technology for R32 Refrigerants
The R1 compressor offers increased efficiency, reliability, and operational range thanks to the improved tilting spiral structures (Scroll system).
- Extended operational range (max. 135 Hz)
- Centrifugal oil return and oil separator guide to reduce oil discharge
- Through-axis design with support at both ends of the axis. Stable compressor operation ensures higher durability
- Lower compression and simple design
• Reduced noise and vibrations
• Lighter weight
• Excellent reliability
Internal Split Unit HN091MR NK5
Components
1. Filter cartridge
2. Water pump
3. Water pressure sensor
4. Flow sensor
5. Plate heat exchanger (refrigerant/water)
6. Venting valve
7. Expansion tank (8 L)
8. Backup electric heater (6 kW for HN091MRNK, 5.3 kW for HN0613MNK)
9. Safety valve
Connections
A. Heating circuit output pipe (PT 1” thread)
B. Heating circuit input pipe (PT 1” thread)
C. Refrigerant liquid pipe (SAE 3/8”)
D. Refrigerant gas pipe (SAE 5/8”)
Optimization notes
1) Unstable temperature due to heat pump hysteresis.
2) Necessity of having multiple open circuits.
3) Frequent heat pump starts reduce its performance and lifespan.
4) Risk of condensation on the ceiling and/or floor without a three-way valve, as the heat pump cannot produce mildly cool water.
5) Insufficiently large storage tank.
6) Maximum savings when combined with battery storage.
7) Inability to control the water outlet temperature of the heat pump.
