CO2 Sensor
The only air quality sensor on the market with hidden installation – no bulky plastic boxes on the wall! Connection via the EXT terminal of bus modules (2UI / 6UI / 6UI6OC / 4UI 2DO) allows installation along long cable lengths without voltage loss.
| Category: | Sensors |
|---|---|
| EAN: | 8586022931017 |
| naskladnenie: | 15.12.2024 |
🛠️ Installation Steps
-
Power Down the System
-
Before inserting the sensor, make sure the TapHome system is completely shut down and not powered. This prevents damage to the sensor.
-
-

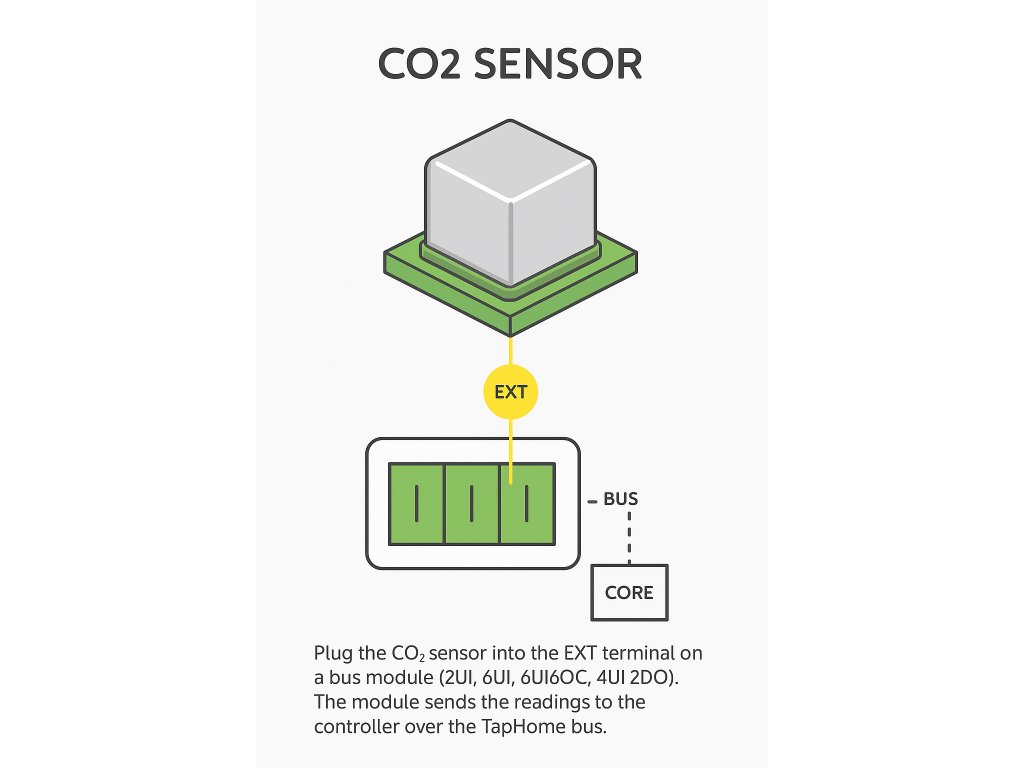

Choose the EXT Terminal
-
Insert the CO₂ sensor into the EXT terminal on a 2UI, 6UI, 6UI / 6OC, or 4UI / 2DO module. These modules support digital communication over a bus line.
-
-
Use an Installation Box
-
The sensor is designed for hidden installation. Place it inside an installation box (e.g., behind a wall socket).
-
-
Ensure Air Circulation
-
The sensing part of the sensor must be directly exposed to circulating air. You can use connectors like RJ45 or HDMI sockets to allow airflow.
-
📏 Sensor Specs
-
Detection Range: 400–5000 ppm CO₂
-
Technology: Photoacoustic
-
Accuracy: ±50 ppm ±3% of reading
-
Response Time: ~90 seconds
-
Operating Conditions: 0–50°C, 5–85% RH
