4 Dim
Dimmer for 230 VAC LED lights or dimmable LED bulbs.
| Category: | Control unit and IO modules |
|---|---|
| EAN: | 8586022931239 |
| naskladnenie: | 20.1.2025 |
Features
- 220 – 240 VAC LED light dimming
- 4 channels
- Loads:
- Capacitive loads (LED bulbs): maximum 100 VA per channel, maximum 10 LED bulbs per channel
- Resistive loads: maximum 250 W per channel
- Short circuit protection, temperature protection for each channel
- Total load for the whole module max. 4 A

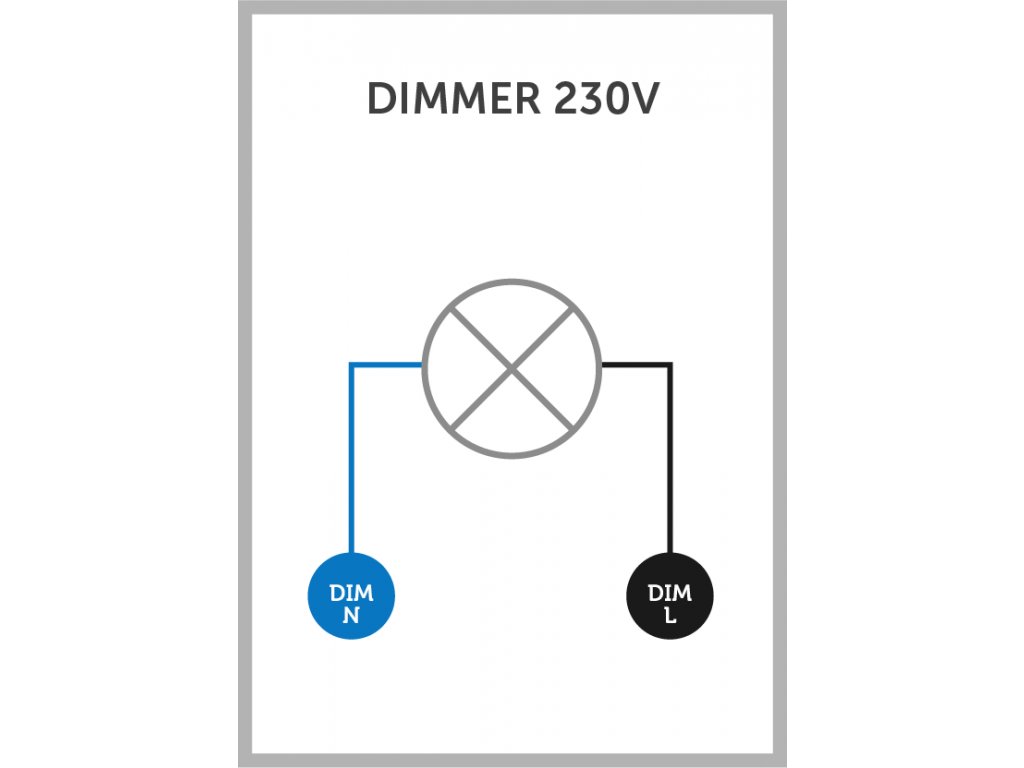

- Every dimmed light or group of lights needs to have its own neutral (N) wire connected
- Leading edge / trailing edge – can be configured via the app
- Tested with Philips Warm Glow and Ikea dimmable LED bulbs. We do not recommend using E14 bulbs, as their compact size limits internal electronics space, which may reduce their lifespan.
- Energy consumption 1 W / Power loss at maximum load 4 W
- Operating temperature: −20 – 55 °C
- DIN rail, 6 modules. Width 107 mm, height 59 mm.
- Wire cross-section: 0.2–2.5 mm² (AWG 24–14)
- Terminal screw torque: 0.5–0.7 Nm
- Strip length: 6.5–7.5 mm
| Connector | Color | Wire | AWG | Torque | Strip | Pins |
|---|---|---|---|---|---|---|
| AC Input | Grey | 0.2–4 mm² | 30–12 | 0.5–0.7 Nm | 6.5–7.5 mm | L, N |
| Outputs | Grey | 0.2–4 mm² | 30–12 | 0.5–0.7 Nm | 6.5–7.5 mm | L1, N1, L2, N2, L3, N3, L4, N4 |
| Power | Red | 0.2–4 mm² | 30–12 | 0.5–0.7 Nm | 6.5–7.5 mm | +24V, GND |
| Bus | Blue | 0.2–4 mm² | 30–12 | 0.5–0.7 Nm | 6.5–7.5 mm | Bus A, Bus B |
